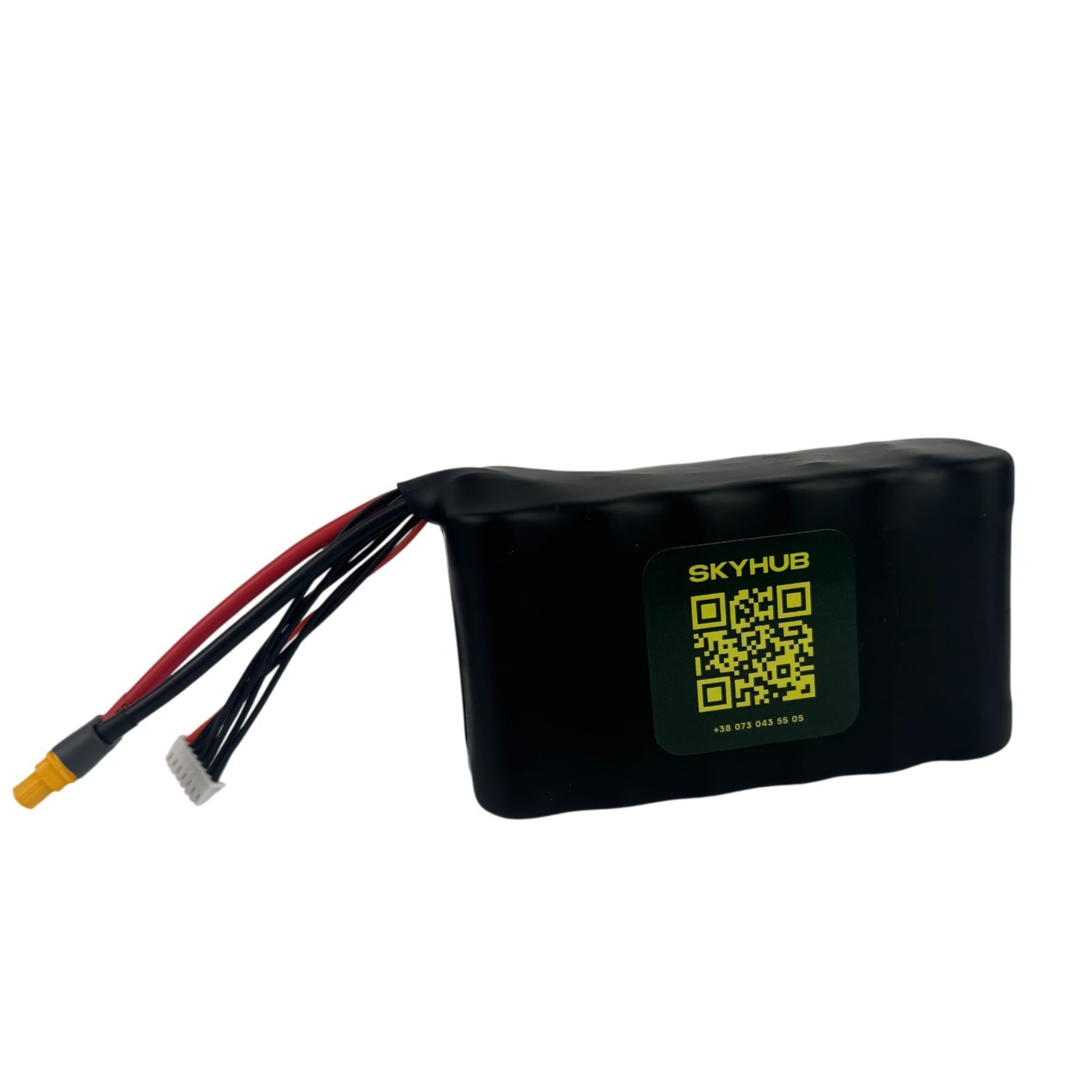

6S2P 10000 mAh FPV Drone Battery (Samsung 50S): Maximum Range and Power
In today's combat environment, power supply for an FPV drone is a critical factor for mission success. The 6S2P 10000 mAh battery pack, based on the legendary Samsung 50S elements, is a power solution designed to perform complex tactical missions. Thanks to its high energy density and stable current output, this battery allows the "bird" Cover long distances with a payload and confidently maneuver in the enemy's electronic warfare zone.
We use only original high-current 21700-size cells, which guarantees that the actual capacity matches the declared characteristics and the battery's survivability under peak loads.
Why is the 6S2P assembly on Samsung 50S cells the choice of professionals?
The choice of Samsung 50S (21700) cells is due to their ability to withstand high discharge currents for a long time without critical overheating and voltage drop. This is especially important for kamikaze attack drones and heavy repeaters.
- High current output: The 80 A nominal discharge current allows for confident takeoff with weight and sharp evasive maneuvers.
- Increased capacity of 10000 mAh: The 2P configuration (parallel connection of two lines) doubles the capacity, which gives the pilot an additional 5-10 minutes of flight compared to standard assemblies.
- Samsung reliability: Original Korean cells have low internal resistance, which minimizes energy loss due to heating.
- Optimal weight (870 g): A balanced ratio of weight to energy capacity maintains the maneuverability of 7-inch and 10-inch frames.
Technical and tactical Assembly characteristics (TTX)
These parameters are designed for intensive use in field conditions. Each assembly undergoes welding quality control and cell internal resistance testing.
| Parameter | Characteristic value |
|---|---|
| Battery type | Li-Ion |
| Cell model | Samsung 50S |
| Configuration | 6S2P |
| Capacity | 10000 mAh |
| Nominal voltage | 21.6 V (DC) |
| Full charge voltage | 25.2 V |
| Nominal discharge current | 50 A+ |
| Maximum discharge current | 90 A |
| Maximum charge current | 12 A |
| Weight | ~870 g |
| Overall dimensions | 65 x 145 x 45 mm |
Design Features and Tactical Applications
The 6S2P 10000 mAh assembly is ideal for missions where range is a priority. The use of the 6S (22.2V) format ensures high motor efficiency at high speeds.
- High-quality contact welding: The cells are connected with thick nickel tape, which eliminates overheating of the contacts at peak currents of 90 A.
- Power wiring: A cable with a high cross-section and silicone insulation is used, which does not lose flexibility in the cold.
- Connectors: An XT60/XT90 power connector (depending on the order) and a JST-XH balancing connector are installed as standard.
Operator advice: To achieve maximum To maintain a long range, we recommend avoiding aggressive acceleration during the first minutes of flight. Li-ion batteries best realize their potential with a smooth discharge, which allows the full 8000 mAh to be extracted without prematurely dropping below 3.0 V per cell.
Advantages for aerial reconnaissance units and strike groups
Unlike standard Li-Po batteries, Li-ion assemblies on the Samsung 50S have a higher energy capacity per unit weight and are safer to transport:
- Survival: Withstand a large number of charge-discharge cycles without loss of capacity.
- Resistance to damage: The rigid casing of 21700 cells better protects the chemistry from mechanical influences.
- Temperature stability: Samsung 50S demonstrate better performance when working in cool weather.
Conclusion: Your advantage in range
6S2P 10000 mAh battery on Samsung The 50S is the choice for those who strive for results. It provides the necessary autonomy for deep reconnaissance and reliable power to engage targets. When every second of flight is worth its weight in gold, choose reliable power.
