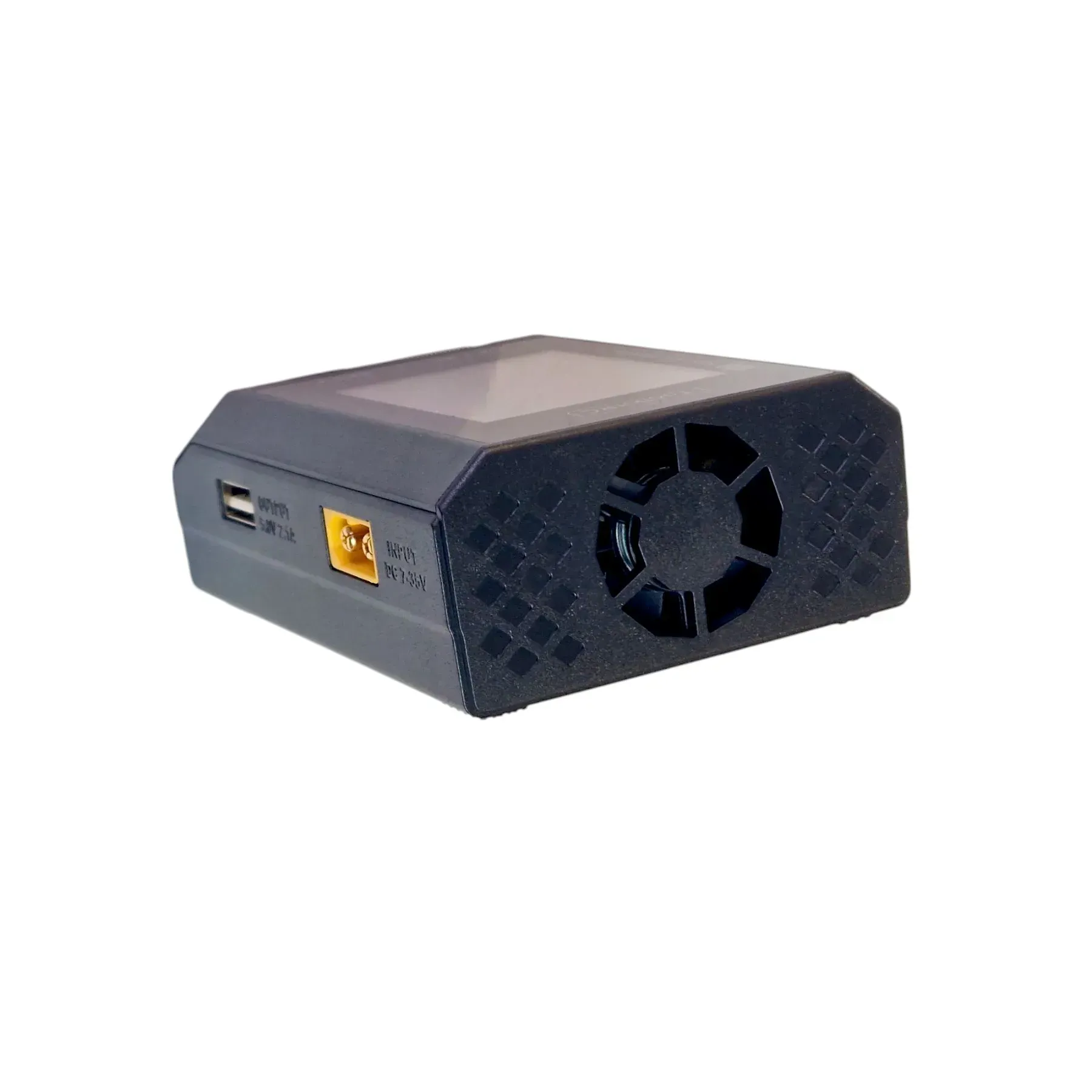

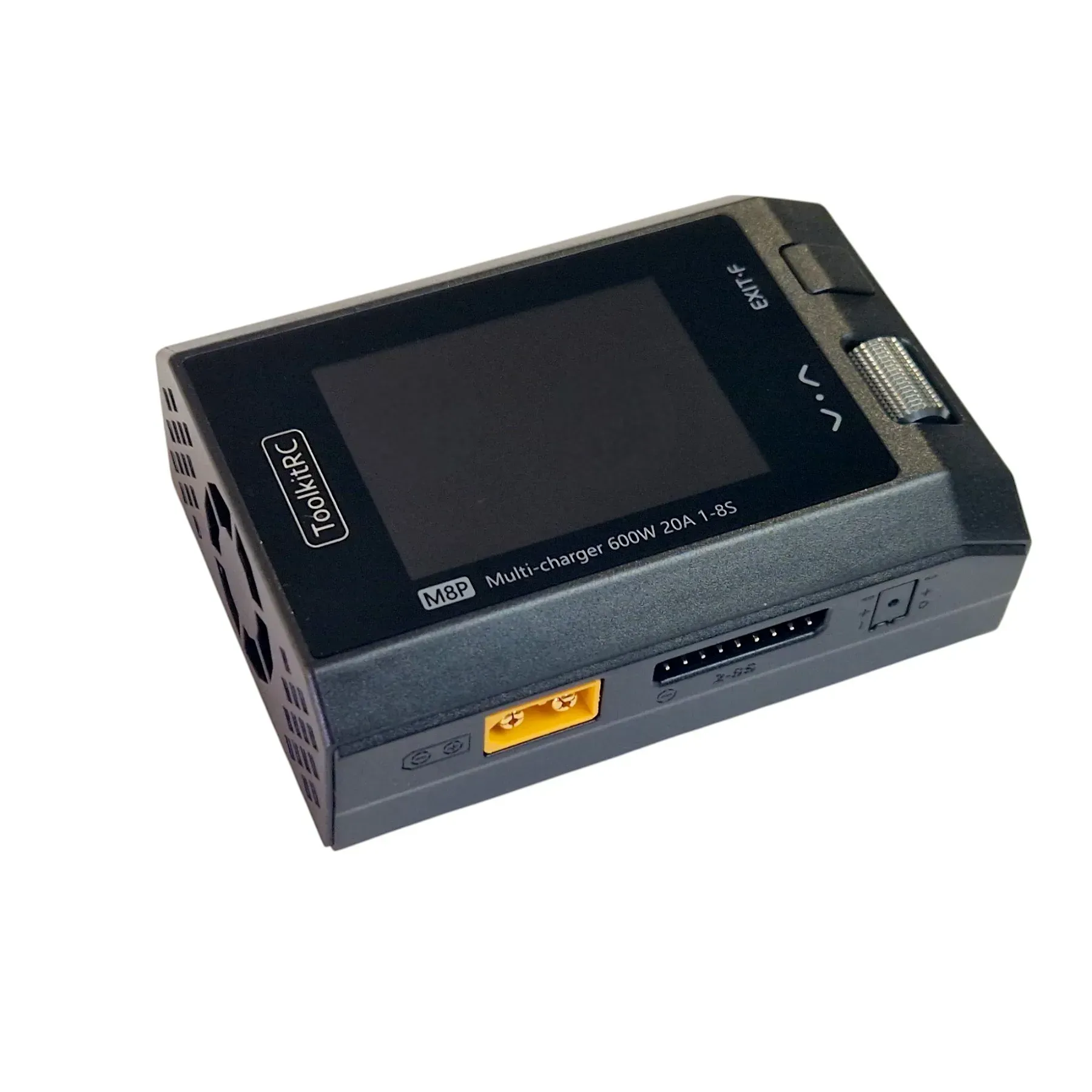

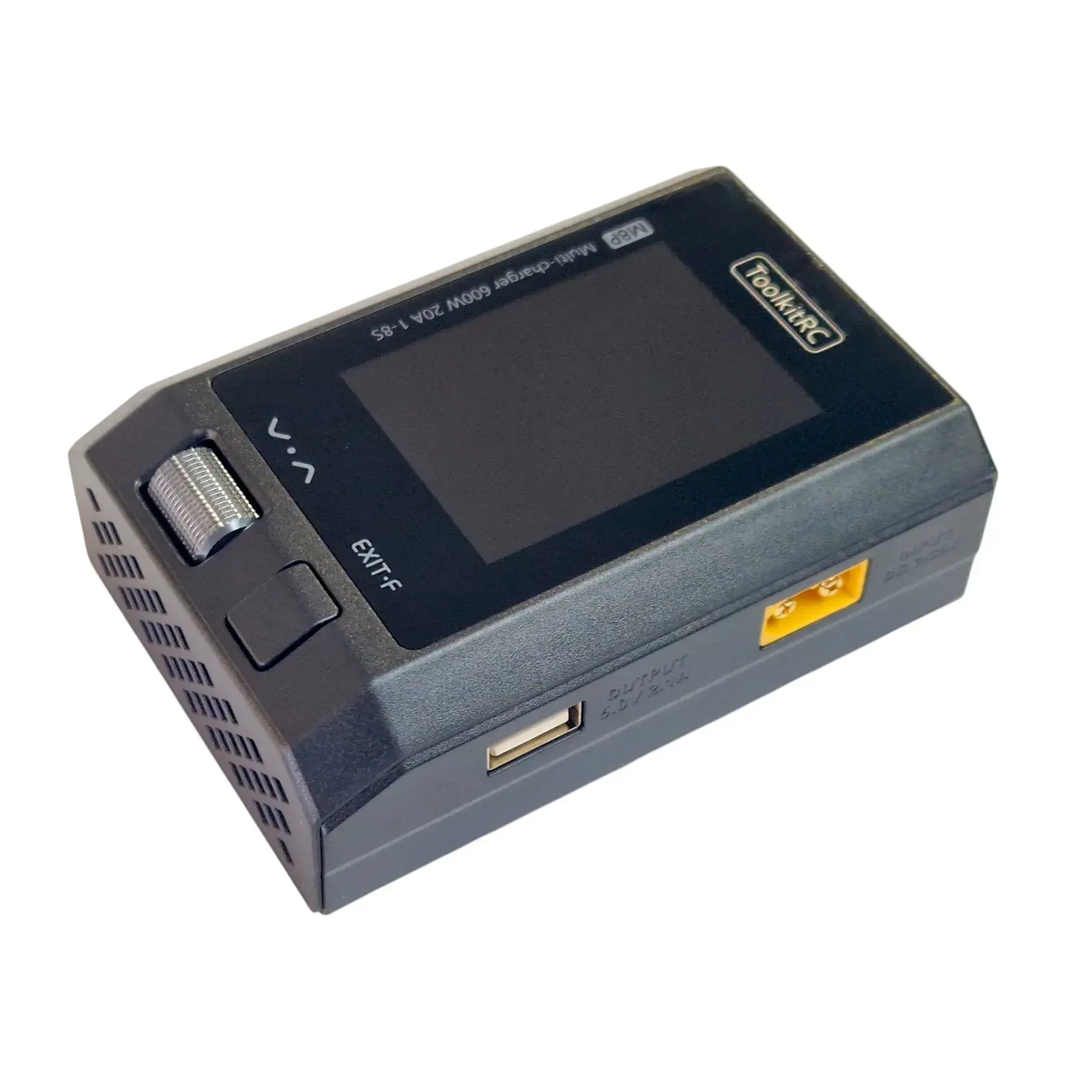

ToolkitRC M8P 600W Charger: Compact Power to Support 8S Systems
In today's drone warfare, reliable power is the foundation of a successful mission. The ToolkitRC M8P is a next-generation intelligent charger that combines a high output of 600W with support for batteries up to 8S. With its compact design and universal power supply, the M8P is the ideal solution for crews operating heavy-duty repeater drones and long-range FPV systems in the field.
This device not only quickly charges high-capacity batteries but also provides in-depth diagnostics of each cell's health, which is critical for aircraft survival during intense maneuvers.
Key Tactical Benefits of the ToolkitRC M8P
The M8P is designed for maximum mobility without sacrificing performance. Its functionality fully meets the needs of the most demanding UAV operators:
- Support for 1-8S LiPo/Li-ion: Ability to service both standard FPV drones and heavy platforms requiring high voltage.
- High balancing current (1000 mA): Accelerates the process of voltage equalization on the cells, which significantly reduces the overall charging time and extends the life of the battery.
- Universal power supply (AC/DC): Flexibility of connection to both the 220V network and to field power sources (car batteries, charging stations).
- Maximum current 20A: Ensures quick preparation of high-capacity batteries for the next flight.
Technical and tactical characteristics (TTX) ToolkitRC M8P
The device parameters are optimized to ensure stable charging even in difficult temperature conditions.
| System Parameter | Characteristic Value |
|---|---|
| Model | ToolkitRC M8P |
| Device Type | Smart Charger |
| Maximum Power | 600 W (at DC input) |
| Charging Current | Up to 20 A |
| Supported Battery Types | LiPo / LiHV / Li-ion / LiFe / NiMH / Pb |
| Number of cells (S) | 1-8S (for lithium types) |
| Balancing current | Up to 1000 mA |
| Display | Color LCD (readable from any angle) |
| Input voltage | AC 100-240V / DC 7-35V |
| Case type | Compact portable (Military-style) |
Operational Capabilities and Diagnostics
ToolkitRC M8P is not just a charger, but a compact laboratory for a unit technician:
- Internal Resistance Analysis: Allows the operator to assess the degree of battery wear and prevent its sudden failure during a mission.
- Digital Power Supply: The ability to use the device as a regulated power supply for testing other field equipment (cameras, transmitters).
- Color Interface: An intuitive menu allows you to quickly configure parameters even in limited time.
- Firmware Update: Via a built-in USB port to support the latest charging algorithms and battery types.
Operator Tip: When operating from a car battery in the field, be sure to monitor The input voltage is displayed on the M8P display. This will help prevent your vehicle's starter battery from completely discharging, maintaining the mobility of the unit.
Why is the M8P the optimal choice for mobile teams?
Unlike heavy stationary stations, the M8P offers the perfect balance between size and power. It easily fits into a tactical pouch, providing the pilot with autonomy at any point of deployment.
- Reliability: The case is resistant to intensive use in field conditions.
- Versatility: Support for Pb (lead) batteries allows you to maintain the charge even of batteries for radios or communication systems.
- Efficient cooling: A smart ventilation system prevents overheating during prolonged operation at high currents.
Conclusion: Power that is always at hand
ToolkitRC M8P 600W 20A 1-8S Charger — This is a reliable tool that keeps your UAV fleet running smoothly. With support for 8S systems and a high power output of 600W, this unit becomes an indispensable assistant for aerial survey professionals who need confidence in every watt of power.
Tactical FAQ: Compact Power ToolkitRC M8P (8S, 600W)
1. What is the maximum power and voltage range of the M8P?
Up to 600W when powered by external DC (7-35V). This allows you to effectively charge your 6S-8S builds with high efficiency. Connect it to your EcoFlow Delta 2 and you have a complete charging station anywhere.
2. What battery configurations does the model support?
Supports LiPo, LiHV, Li-ion, LiFe (1S-8S). Working with 8S makes it indispensable for your most powerful 8S3P and 8S6P batteries. As a future medic, you will appreciate the precision of adjustment for each type of "patient".
3. What is the maximum charging current the device delivers?
The current is adjustable up to 20.0 A. This is enough to charge a 20,000 mAh battery in approximately 80-90 minutes.
4. What are the hardware testing functions in the M8P?
The device tests PWM, PPM, and SBUS signals, and also measures the internal resistance of each cell. It's your personal diagnostic lab: if the resistance rises, the cell is "sick" and needs to be replaced.
5. USB port capabilities for gadgets?
The USB-C PD 65W port will quickly charge your laptop or Radiomaster remote control. It's very convenient when one compact device powers both the power batteries and all the operator's associated electronics.

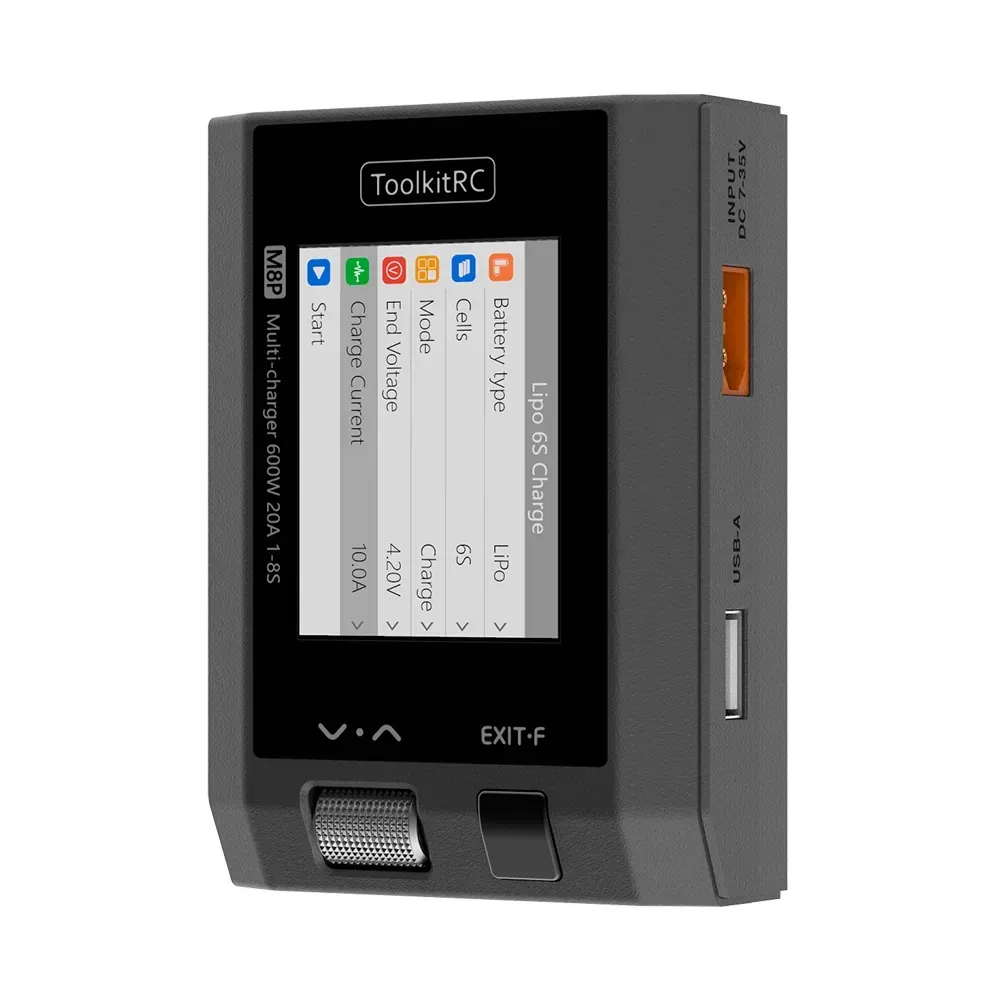

6. User interface and display?
Color 2.4" IPS-screen and a convenient metal control roller. In Bannerlord, you would call this ideal inventory management - everything is clear, logical, and controlled with one movement.
