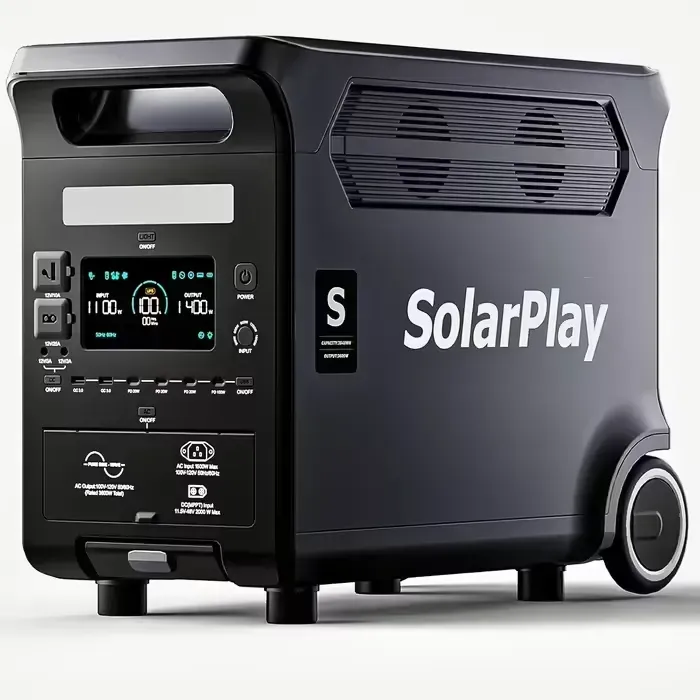

Description of SolarPlay Q3600

SolarPlay Q3600 is a powerful portable charging station with an output power of 3600 W and a capacity of 3840 Wh based on a LiFePO4 battery. It is designed to power energy-intensive appliances such as induction cookers, air conditioners and power tools, and can also be used as a backup power source for homes, camping or motorhomes (RVs).

The station generates a pure sine wave, supports up to 15 output ports and is equipped with a built-in UPS with a transfer time of up to 20 ms, which ensures the safe operation of sensitive equipment.

Technical Specifications of SolarPlay Q3600

Alternating Current (AC) Output

• Output Voltage: 220-240 V AC
• Rated Power: 3600 W
• Waveform: pure sine wave
• Frequency: 50 / 60 Hz
• Efficiency: more than 88%
• Protection: automatic shutdown in case of overload and short circuit

UPS mode

• Power: up to 2500 W
• Switching time: no more than 20 ms
• Overheat protection: operating temperature from -10 °C to +40 °C

Battery

• Battery type: LiFePO₄ (LFP32135)
• Capacity of one cell: 15 Ah
• Total capacity: 3840 Wh
• Battery configuration: 16S5P

Charging

Charging from AC network

• Input voltage: 185-255 VAC
• Frequency: 47-63 Hz
• Charging power (adjustable): 400, 800, 1200, 1600 or 2200 W

Solar panel charging (MPPT)

• Connector: XT90
• Voltage range: 12-160 VDC
• Current: up to 18 A
• Maximum MPPT power: up to 2000 W
• Charging temperature: from 0 to +50 °C

Direct current (DC) outputs

• Car cigarette lighter: 12 V / 10 A
• XT60: 12V/25A
• DC 5521 x2: 12V/3A
• USB-A x2: QC 3.0 up to 18W (5V/9V/12V)
• USB-C x3: PD 2.0 up to 20W (5V/9V/12V)
• USB-C x1: PD up to 100W (5V/9V/12V/15V/20V)

Protection and additional functions

• BMS system: multi-level protection against overcharge, overdischarge,Overload and short circuit protection
• Lighting: built-in 2-4W warm white LED light
• Noise level: less than 40 dB

Dimensions and weight

• Dimensions: 608 x 292 x 456 mm
• Weight: 42.2 kg

Certification

• CE
• FCC
• RoHS
• PSE
• UN38.3
• MSDS

SolarPlay power stations are designed to operate in power grids with voltage within the permissible standards.
