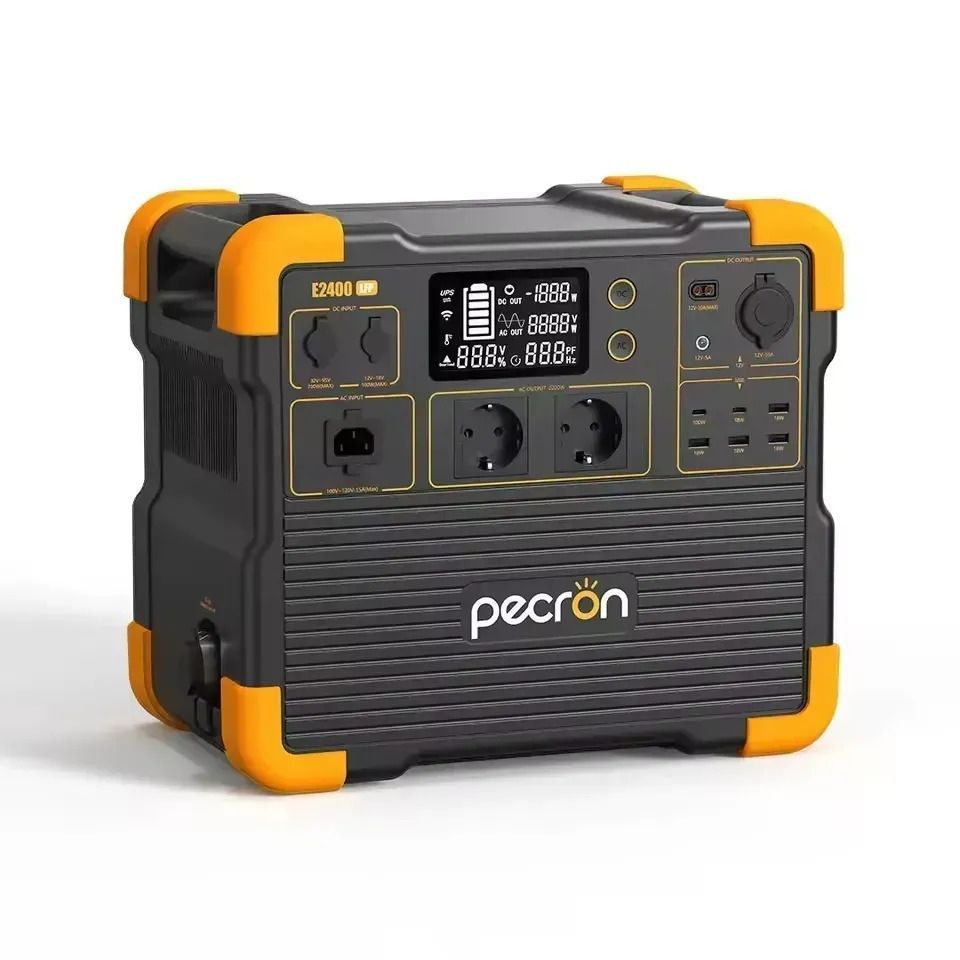

The Pecron E2400LFP portable power station is designed for autonomous and backup power supply during power outages, travel, outdoor work, or use in mobile workshops. The built-in pure sine wave inverter provides a rated output power of up to 2400 W, allowing you to power most household appliances and professional equipment.

The power station is equipped with a 2048 Wh LiFePO₄ battery. The battery is rated for more than 3500 full charge cycles while retaining at least 80% of its original capacity. This type of battery offers a long service life, thermal stability, and increased safety.

The maximum AC charging power is up to 1800 W, allowing the battery to be fully recharged in approximately 1.5 hours. The power station can also be charged from a vehicle or solar panels with a total power of up to 800 W.

The UPS function automatically switches connected equipment to battery power within 8–20 ms in the event of a power outage. This makes the Pecron E2400LFP suitable for backup power for computers, routers, video surveillance systems, boilers, and other equipment.

The charge level, input power, and output power can be monitored on the built-in display or remotely via the PECRON app. The app connects to the power station via Wi-Fi.

Additional battery modules can be connected to increase the overall runtime. With two EP3000-48V batteries, the total system capacity can be increased to 8192 Wh.

Specifications

• Model: Pecron E2400LFP
• Device type: Portable power station
• Battery type: LiFePO₄
• Capacity: 2048 Wh
• Battery parameters: 51.2 V / 40 Ah
• Rated output power: 2400 W
• Output waveform: Pure sine wave
• Output voltage: 220–240 V
• Battery life: More than 3500 cycles to 80% capacity
• Maximum AC charging power: 1800 W
• Full AC charging time: Approximately 1.5 hours
• Maximum solar charging power: 800 W
• Solar controllers: 2 independent MPPT controllers
• UPS function: Yes
• UPS transfer time: 8–20 ms
• Simultaneous charging and powering of devices: Supported
• App control: PECRON
• Wireless connection: Wi-Fi 2.4 GHz
• Additional battery connection: Supported
• Maximum capacity with two EP3000-48V batteries: 8192 Wh
• Charging temperature: 0 to +45 °C
• Discharging temperature: −20 to +45 °C
• Dimensions: Approximately 376 × 236 × 330 mm
• Weight: Approximately 20.5 kg

Solar Charging

The Pecron E2400LFP is equipped with two independent MPPT controllers that enable efficient charging from solar panels. The maximum total solar charging power is 800 W.

Solar input parameters:

• DC5521: Operating voltage 12–18 V, up to 100 W and 7 A;
• Maximum open-circuit voltage for DC5521: Up to 25 V;
• GX16MF: Operating voltage 32–95 V, up to 700 W and 15 A;
• Maximum open-circuit voltage for GX16MF: Strictly below 95 V;
• Panel connection type: Via the included MC4 cable.

When connecting solar panels in series, the total open-circuit voltage must be calculated. Exceeding 95 V at the GX16MF input may damage the power station. For maximum efficiency, it is recommended to use solar panels with identical specifications.

Ports

The Ukrainian version of the Pecron E2400LFP has 11 output ports:

• 2 × AC 220–240 V outlets;
• 4 × USB-A with support for 5/9/12 V, up to 18 W each;
• 1 × USB-C up to 18 W;
• 1 × USB-C Power Delivery up to 100 W;
• 1 × 12 V / 10 A car socket;
• 1 × XT60-F — 12 V / 30 A, up to 360 W;
• 1 × DC5525 — 12 V / 5 A.

Charging inputs:

• AC input for fast charging from the mains;
• DC5521 — for vehicle or low-voltage solar charging;
• GX16MF — for solar panels with a power output of up to 700 W;
• MJ32 — for connecting additional battery modules.
