Wholesale price (from 50 pcs.) - 37,999 UAH

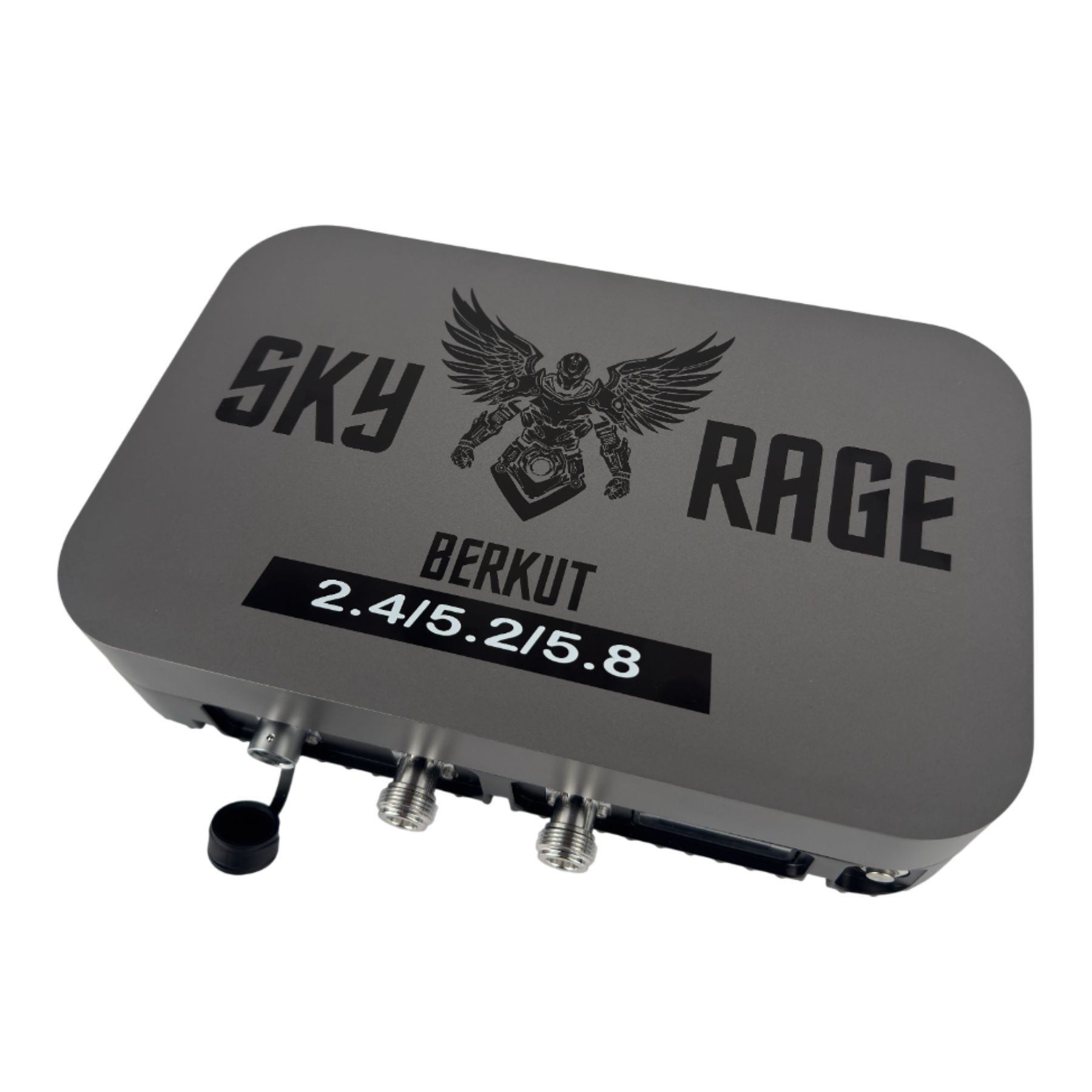

Berkut SkyRage 2.4/5.2/5.8G 10W remote antenna, signal booster for DJI Mavic 3, 3T, Matrix and Autel quadcopters

The AWS-BS4S/AWS-SB4S Wi-Fi signal booster is a professional dual-frequency device designed to provide the most stable and powerful wireless connection in the 2.4 GHz and 5.8 GHz ranges. With a high output power of 4000 mW, it is suitable for long-range applications, including remote control of unmanned aerial vehicles (UAVs), field communications, and amplifying weak signals in hard-to-reach areas.
Main specifications

Parameter Value

Operating frequencies 2400-2500 MHz, 5000-5875 MHz

Output power Two three-way amplifiers 10W (40 dBm) & times; 2

Transmission coefficient 20-22 dB

Noise figure ≤2.0 dB

Antenna gain 2.4G - 15dBi (+/- 1), 5.8G - 18dBi (+/- 1)

Operating angles Horizontal - 65°, vertical - 20°

Supported voltages 6-12V

Battery voltage and capacity 7.4V, 6400 mAh

Connector type NK Female

Weight 1680 g
