Technical and Tactical Specifications

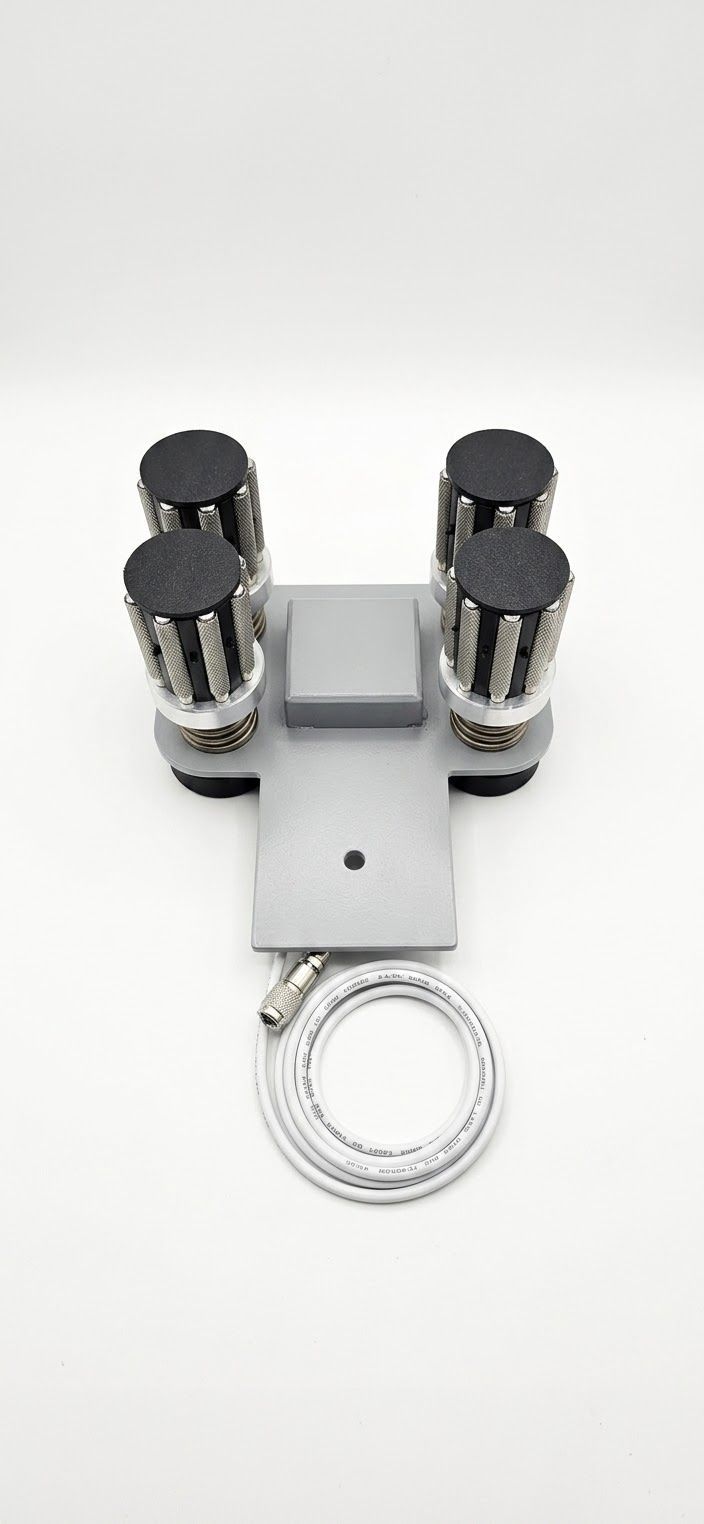

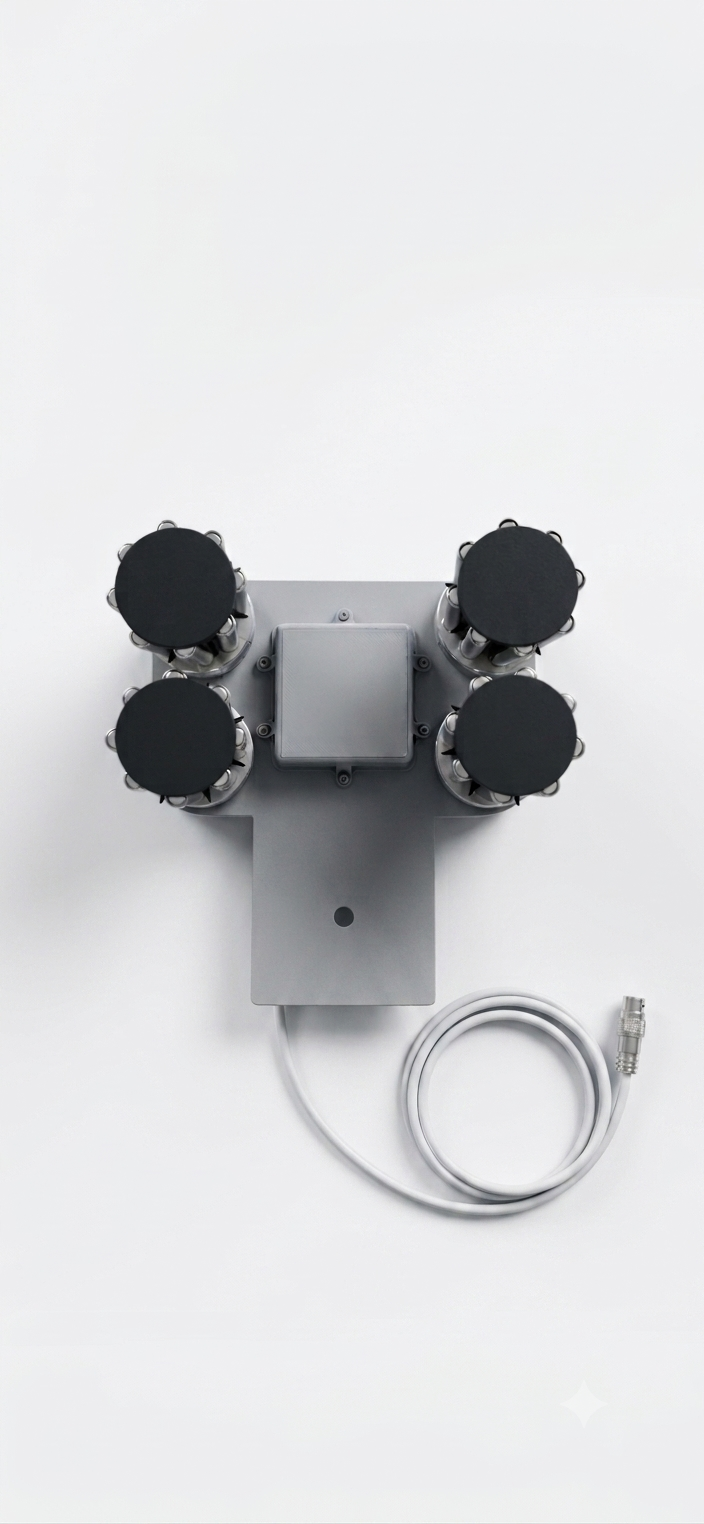

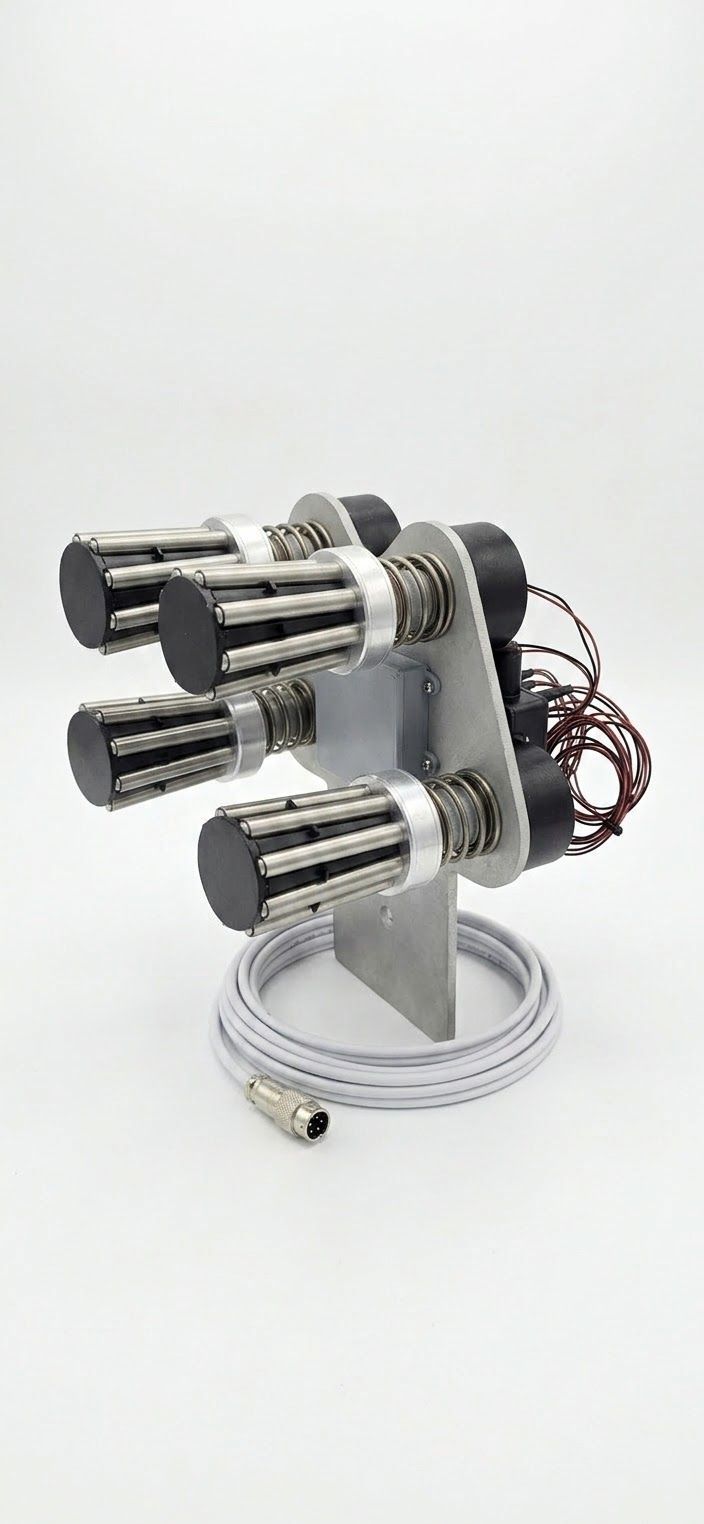

DBE-4S DRONOBIY Net Launcher with Electric Trigger is a drone interception system that uses an electronically controlled mechanism for instant net deployment in less than 0.2 seconds.
The system features a reusable design and is available in 2-, 3-, 4- shot configurations. It consists of an electric trigger system with a control board and a universal mounting plate for installation on various types of platforms.
- Shot initiation: electronic trigger via controller
- Shot energy: 950 J
- Net size: 4.0 × 4.0 m
- Muzzle velocity: 100 m/s
- Full net deployment distance: 10 m
- Effective engagement distance: 10–45 m
- Weight of the loaded electric net launcher: 5.8 kg
Main Technical Data
| Parameter | Unit | Value |
|---|---|---|
| Number of barrel assemblies | pcs. | 4 |
| Net launcher dimensions, L × W × H | mm | 260 × 240 × 170 |
| Shot energy | J | 950 |
| Muzzle velocity | m/s | 100 |
| Net size | m | 4.0 × 4.0 |
| Full net deployment distance | m | 10 |
| Effective engagement distance | m | 10–45 |
| Weight of the loaded electric net launcher | kg | 5.8 |
Technical Description
- Electric trigger system with control board;
- Barrel assembly with breech;
- Guide assembly for the net cartridge;
- Cartridge with net and darts;
- Electric pyrotechnic cartridge;
- Universal mounting plate;
- Power supply: 6–24 V;
- Metal trigger system construction.
Key Features
- Electronically controlled mechanism;
- Instant net deployment — less than 0.2 seconds;
- Reusable design;
- Universal mounting system;
- 6–24 V power supply;
- Metal trigger system construction.
