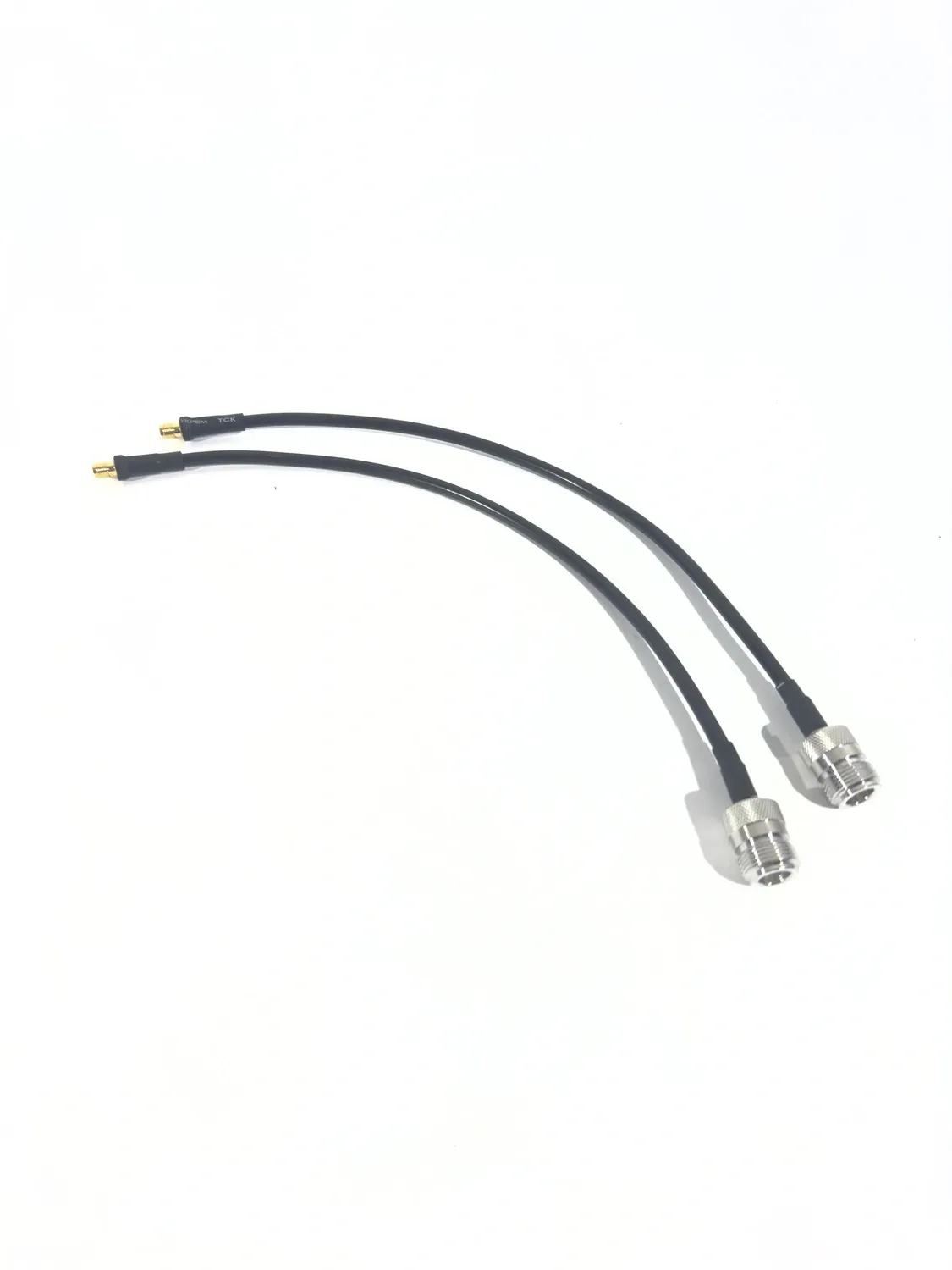

SMA Female to N-Type Female Adapter: A Reliable Bridge for Tactical Communications
In modern aerial reconnaissance and electronic warfare (EW) systems, the quality of each connection determines the operating range of the equipment and the safety of the crew. The SMA Female to N-Type Female High-Frequency Adapter is a professional solution for connecting equipment of different standards. It allows you to connect cable assemblies with N-type connectors (the standard for high-power antennas and trunk lines) to devices with an SMA interface (boosters, UAV control panels, portable radios).
Expert advantages of the adapter in combat conditions
At frequencies up to 6 GHz, where most modern drones and jamming equipment operate, it is critical to avoid bottlenecks in the feeder line. This adapter is designed to provide a stable 50 Ohm impedance, which minimizes the standing wave ratio (SWR) and protects your transmitter from overheating and failure.
- Precision execution: Precise connector geometry ensures tight contact, eliminating signal dropouts due to vibration, strong wind or shaking.
- Wide frequency range: Stable operation at frequencies of 2.4 GHz and 5.8 GHz - main ranges for DJI, Autel systems and FPV drones.
- Mechanical durability: The body is made of a wear-resistant alloy with a high-quality coating, which allows for multiple connection/disconnection cycles in the field without thread degradation.
- Low attenuation: Minimal insertion loss ensures maximum transmission range of the video signal and control commands.
Technical and tactical characteristics (TTX)
The adapter meets the strict standards of radio frequency connections used in professional and military communications equipment.
| Parameter | Characteristic Value |
|---|---|
| Device Type | RF Adapter (Coaxial Adapter) |
| Connector A | SMA Female |
| Connector B | N-Type Female |
| Wave Impedance | 50 Ohm (RF Communication Standard) |
| Operating Frequency | 0 - 6 GHz (High Frequency) |
| Dielectric Material | PTFE (resistant to temperature changes) |
| Design | Straight |
Frontline Applications:
- UAV Console Upgrades: Connecting high-power external antennas via N-type remote cables to SMA connectors on the console or booster.
- Signal Boosters: Connecting amplifier output ports (Alientech, AvengeAngel) to long feeder lines.
- Electronic Warfare / SIGINT Systems: Adapting antenna modules to spectrum analyzers or jammers.
- Equipment Protection (Connector Saver): The adapter can be used to protect the expensive connector on the main device from physical wear and tear during frequent cable changes.
Expert Opinion: The use of Female-Female adapters is often necessary for connecting two cable assemblies (male-male) or as a transition link when constructing complex antenna masts. With an impedance of 50 Ohms, this adapter is transparent to digital data transmission protocols, without introducing distortion into telemetry packets.
Conclusion: Reliability that won't let you down
The SMA Female to N-Type Female adapter is a small but critical piece of your technical arsenal. Compact size, supports frequencies up to 6 GHz and high-quality materials make it an ideal choice for professionals working in combat zones.
FAQ:SMA Female to N-Type Female Adapter Questions and Answers
What is special about the Female-Female configuration?
This adapter has holes (sockets) on both sides. It is designed to connect two cables or devices that end in plugs ("males"). If you have an N-type Male cable and an SMA Male extender, this adapter is the only way to connect them.
How can I visually distinguish this adapter?
N-type side: Large external thread, inside is a socket. SMA side: Small external thread, inside is also a socket. This adapter does not have a central pin on either side.
Does the adapter affect the flight range or video quality?
Signal loss is less than 0.15 dB, which is practically unnoticeable. A high-quality brass adapter with a resistance of 50 Ohms guarantees a stable, interference-free connection if all connectors are tightly screwed.
Where is this adapter most often used?
The main scenario is connecting remote antennas. If your thick antenna cable has an N-Male connector, and the cable from the remote control or booster has an N-Male connector, then SMA-Male, this adapter becomes an essential link.
Why nickel or gold plating?
It's corrosion protection. Nickel plating protects the N-type side from outdoor moisture, and gold plating on the SMA contact ensures excellent conductivity and durability, even with very frequent use.
Can it be used for fixed systems?
Yes, it is ideal for repeaters and electronic warfare systems. The adapter's massive body takes the mechanical load from heavy cables, protecting the fragile connectors of your equipment from breakage.
Does the adapter affect the flight range or video quality?
Signal loss is less than 0.15 dB, which is practically unnoticeable. A high-quality brass adapter with a resistance of 50 Ohm guarantees a stable, interference-free connection if all connectors are tightly screwed.
Where is this adapter most often used?
The main scenario is connecting remote antennas. If your thick antenna cable has an N-Male connector, and the cable from the remote control or booster has an N-Male connector, then SMA-Male, this adapter becomes an essential link.
Why nickel or gold plating?
It's corrosion protection. Nickel plating protects the N-type side from outdoor moisture, and gold plating on the SMA contact ensures excellent conductivity and durability, even with very frequent use.
Can it be used for fixed systems?
Yes, it is ideal for repeaters and electronic warfare systems. The adapter's massive body takes the mechanical load from heavy cables, protecting the fragile connectors of your equipment from breakage.
Does the adapter affect the flight range or video quality?
Signal loss is less than 0.15 dB, which is practically unnoticeable. A high-quality brass adapter with a resistance of 50 Ohm guarantees a stable, interference-free connection if all connectors are tightly screwed.
Where is this adapter most often used?
The main scenario is connecting remote antennas. If your thick antenna cable has an N-Male connector, and the cable from the remote control or booster has an N-Male connector, then SMA-Male, this adapter becomes an essential link.
Why nickel or gold plating?
It's corrosion protection. Nickel plating protects the N-type side from outdoor moisture, and gold plating on the SMA contact ensures excellent conductivity and durability, even with very frequent use.
Can it be used for fixed systems?
Yes, it is ideal for repeaters and electronic warfare systems. The adapter's massive body takes the mechanical load from heavy cables, protecting the fragile connectors of your equipment from breakage.
Can it be used for fixed systems?
Yes, it is ideal for repeaters and electronic warfare systems. The adapter's heavy-duty housing absorbs the mechanical stress of heavy cables, protecting the fragile connectors of your equipment from damage.
Can it be used for fixed systems?
Yes, it is ideal for repeaters and electronic warfare systems. The adapter's heavy-duty housing absorbs the mechanical stress of heavy cables, protecting the fragile connectors of your equipment from damage.
