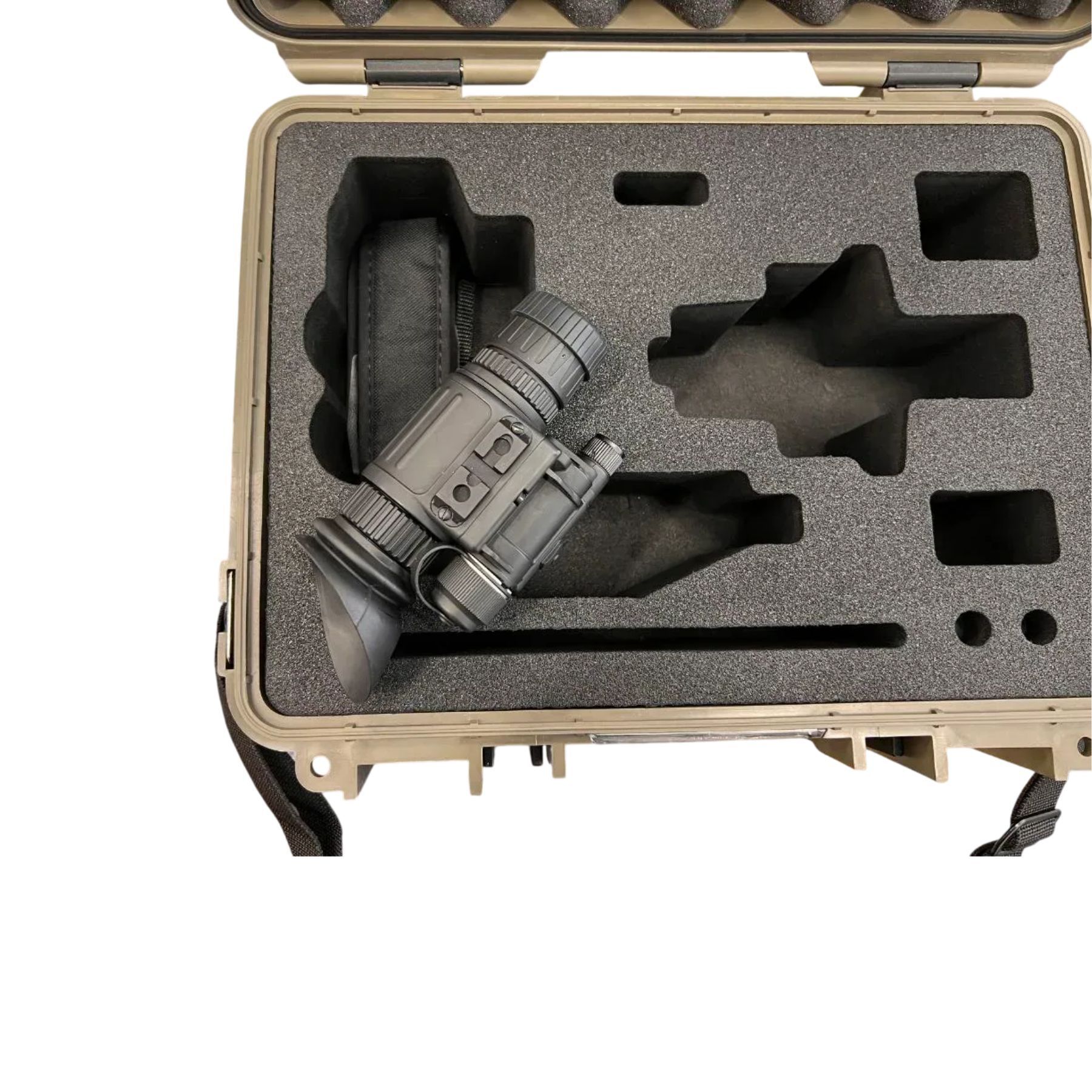

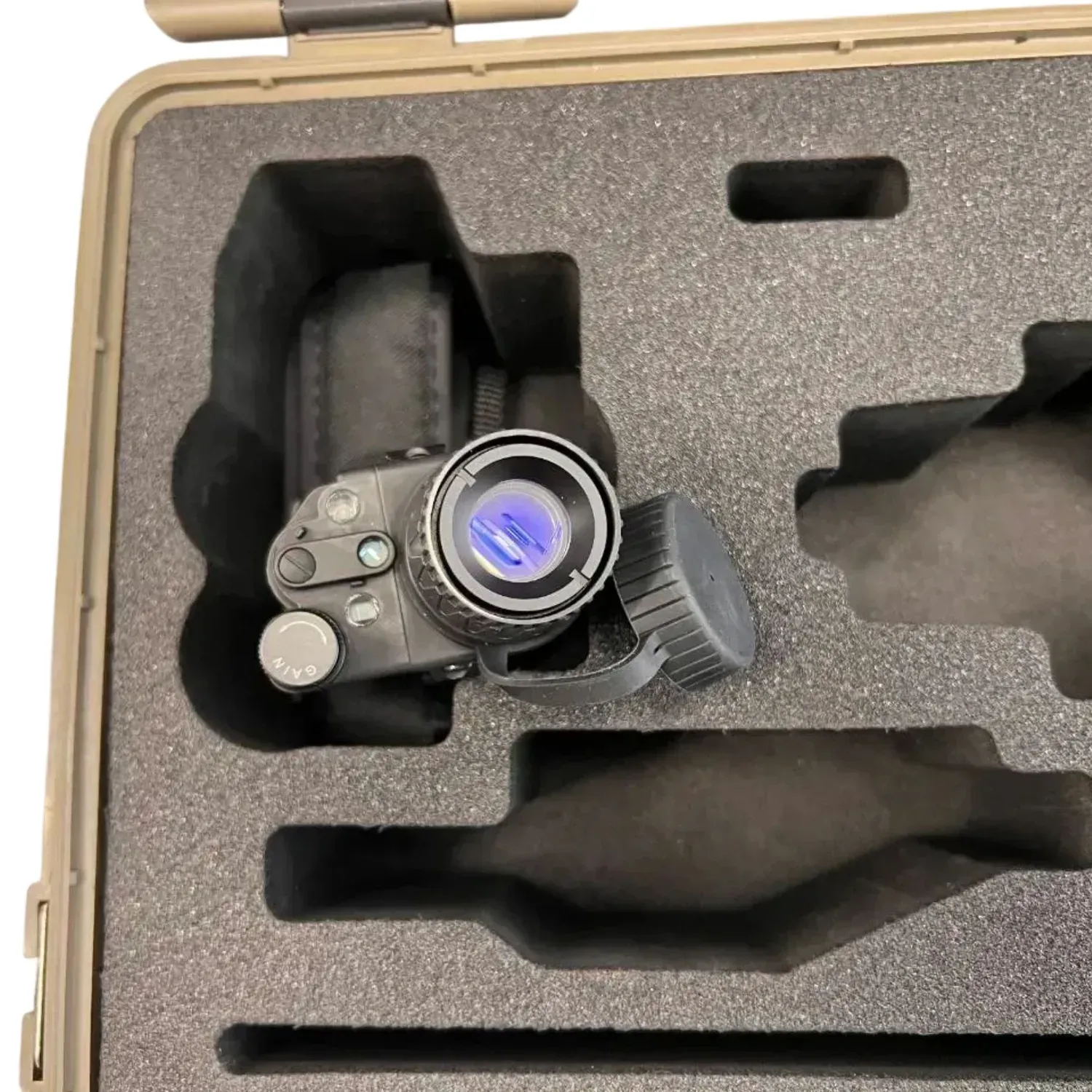

ARCHER NVMA 14 Green Phosphor Monocular: Elbit's Gen 3 Standard for Night Operations
In today's combat, quality night vision optics isn't just an advantage; it's a matter of survival and mission success. The ARCHER NVMA 14 is a high-tech night vision monocular built around a premium 3rd-generation image intensifier tube (IIT) from Elbit Systems, an American corporation. This device is designed for professionals who demand maximum detail, reliability, and minimal equipment weight.
Elbit Gen 3 Green Phosphor IIT: Unrivaled Sensitivity
The heart of the device is the American Elbit Gen 3 tube with a green phosphor. The use of a gallium arsenide (GaAs) photocathode provides ultra-high sensitivity in the near infrared range. Classic green phosphorus guarantees maximum contrast, allowing the operator to instantly recognize camouflaged objects against a background of complex vegetation.
- Manual Gain: The smooth brightness adjustment function allows you to adapt the image to any lighting conditions - from a moonless night to urban light pollution, reducing eye strain.
- High-aperture optics (F/1.2): The 27 mm lens system captures even the smallest particles of light, producing a clear image where other devices see only darkness.
- Image clarity: Elbit image intensifier tubes are distinguished by strict quality control - Minimal noise levels (snow) and the absence of significant defects (black dots) ensure comfort during long-term observation.
Ultra-lightweight design and combat endurance
ARCHER NVMA 14 is one of the lightest professional monoculars on the market. It weighs only ~260 g, which is significantly less than standard systems such as the PVS-14. This dramatically reduces the load on the cervical vertebrae when worn on a helmet for a long time.
- IP67 protection standard: The device is completely sealed, protected from dust, heavy rain and can withstand immersion in water to a depth of 1 meter (up to 30 minutes).
- Universal power supply: The unique design allows the use of both CR123 lithium batteries (up to 40 hours of operation) and regular AA batteries (up to 20 hours), which simplifies logistics in the field.
- Shock-resistant polymer: The body is made of reinforced composite,Resistant to shock, vibration, and extreme temperatures from -40°C to +50°C.
Technical Specifications (TTX) ARCHER NVMA 14
| Parameter | Value |
|---|---|
| Type of image intensifier | Elbit Gen 3, Green Phosphor (USA) |
| Magnification | 1× (natural distance perception) |
| Field of view (FOV) | 40° |
| Optical system | 27 mm, F/1.2 |
| Diopter correction | –6 … +4 dpt |
| Weight | ~260 g (Ultra-Lightweight) |
| Protection class | IP67 (dustproof and waterproof) |
| Power | 1 x CR123 or 1 x AA |
Tactical Versatility and Mounting Options
Thanks to its compact size and standard mounting interfaces, the NVMA 14 adapts to any task:
- Helmet Mount: Compatible with all modern mounts and headbands for hands-free operation.
- Weapon System: Can be mounted behind a collimator sight for accurate fire at night.
- Handheld Use: The ergonomic design allows for quick handheld reconnaissance.
- Built-in IR Illuminator: Allows operation in complete darkness (closed basements, tunnels).
Expert opinion: The ARCHER NVMA 14 with an Elbit tube is the choice of those who prioritize reliability and minimal weight. It is the "workhorse" of special forces,where it's critical to see every detail without weighing your head down.
Conclusion
The ARCHER NVMA 14 GREEN PHOSPHOR ELBIT 3Gen night vision monocular is an investment in your combat effectiveness and safety. American light amplification technologies, an ultra-lightweight body, and outstanding battery life make this device one of the best in its class.
Frequently Asked Questions about the ARCHER NVMA 14 Elbit Gen 3 Green Monocular
How is the Elbit Gen 3 tube better than conventional 2nd generation devices?
The main difference is sensitivity. Gen 3 with a gallium arsenide (GaAs) photocathode sees in much darker conditions. Where 2+ devices require IR illumination, the Elbit Gen 3 continues to produce a crisp and clear image using natural starlight.
Does the green phosphorus in this model cause eye fatigue?
The green spectrum is most familiar to the human eye when recognizing details. With the Manual Gain feature, you can reduce excess glare, which minimizes eye fatigue during prolonged use.
Is the ARCHER NVMA 14 compatible with standard mounts?
Yes, the NVMA 14 is based on the PVS-14 standard, so it is fully compatible with all J-Arm adapters, binocular bridges, and helmet mounts (e.g., Wilcox L4 G24).
Is the device protected from flashes of light?
Yes, Elbit Gen 3 tubes are equipped with the Auto-Gating feature. It instantly reacts to sudden changes in lighting (headlights, flashes), protecting the image intensifier from damage and allowing you to continue observing without delay.
What power does this monocular use?
The device is powered by one regular AA battery. One high-quality battery is enough for 40-50 hours of continuous operation (with the IR illumination turned off).
Can this monocular be mounted on a weapon?
Yes, the NVMA 14 is designed for the recoil of calibers up to 5.56 NATO. It can be mounted behind a collimator sight, but the main scenario for its use remains work on a helmet.
