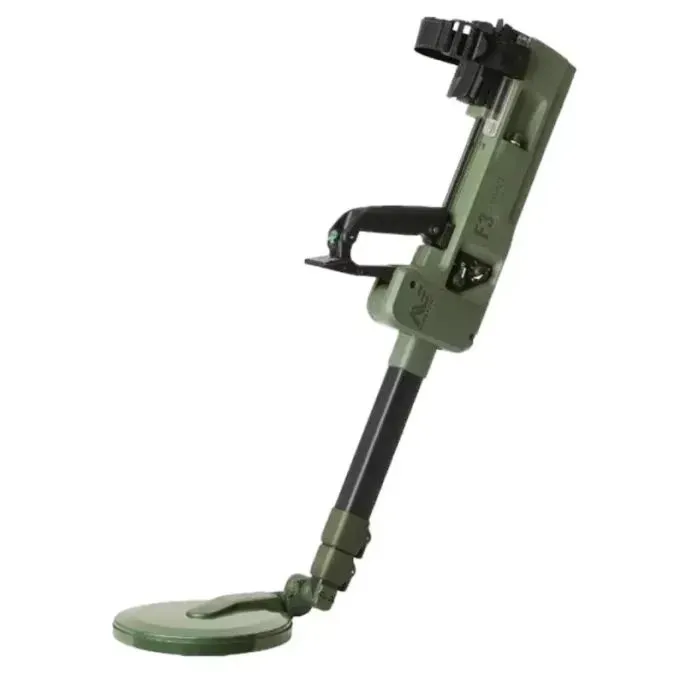

Minelab F3 Compact Mine Detector: The Professional Standard in Tactical Demining
In today's conflict and humanitarian demining, the cost of error is human life. Minelab F3 Compact is more than just a metal detector; it's a specialized military tool designed to detect minimum metal mines, improvised explosive devices (IEDs), and unexploded ordnance. Featuring pulse induction technology and an incredibly compact form factor, this device is the number one choice for deminers, engineering units, and humanitarian missions.
Key Benefits of MPS Technology and Compact Design
The key feature of the Minelab F3 Compact is Using patented Multi-Period Sensing (MPS) technology. Unlike conventional detectors, it effectively ignores soil mineralization, which allows working in the most difficult conditions (magnetic sand, salt water, ferrous soil) without losing detection depth.
- Maximum mobility: The device folds to a record-breaking 405 mm. It easily fits into a backpack or bag, which is critical for mobile clearance teams.
- High sensitivity: 7 settings allow the operator to adapt the device to specific types of targets - from small anti-personnel mines to large IEDs.
- Reliability under stressful conditions: The absence of complex displays ensures quick orientation. LED indication and clear sound allow you to work in rain, mud, or in the dark.
- Full package: The device is ready to work out of the box, including a headset for covert searching and safe audio monitoring.
Technical specifications (TTX) Minelab F3 Compact
We have revised the technical data for convenient analysis by specialists before making a purchasing decision.
| Parameter | Characteristic value |
|---|---|
| Purpose | Detection of mines (VOP), IEDs,Unexploded Ordnance |
| Search Technology | Pulse Induction (Multi-Period Sensing - MPS) |
| Operating Frequency | 1.25 kHz ±3% PRF |
| Coil Type | Monoloop, 200 mm diameter |
| Ground Balance | Fixed (maximum stability) |
| Sensitivity Adjustment | 7 levels (manual adjustment) |
| Noise reduction | Semi-automatic (EMF rejection) |
| Target indication | Built-in speaker, LEDs, Earset headphones |
| Power supply | 4 type C batteries (LR14) — Alkaline / NiCad / NiMh |
| Dimensions (length) | From 750 mm to 1530 mm |

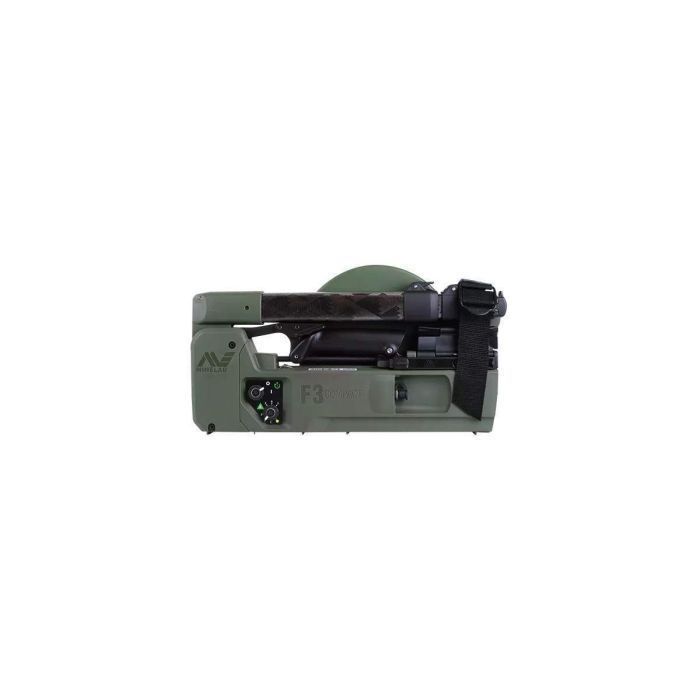

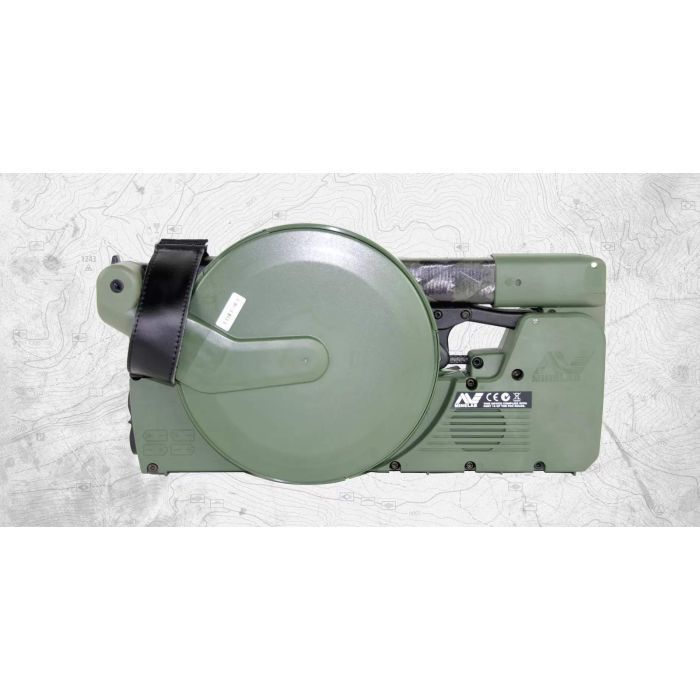

| Folded | 405 mm |
| Weight with batteries | 2.6 kg |
Features of operation in field conditions
Minelab F3 Compact is designed to meet strict military standards. Its design eliminates accidental breakage during transportation in the back of a vehicle or when working in dense vegetation.
- Interference resistance: Thanks to semi-automatic noise suppression, the device operates reliably under power lines and near communication facilities.
- Simplicity and safety: Fixed ground balance eliminates the need for constant calibration, which reduces operator fatigue and the likelihood of missing a dangerous object.
- Ergonomics: The telescopic rod allows you to adjust the length to any operator height or search conditions (working standing or lying down).
Expert opinion: The F3 Compact model is a benchmark mine detector for those who work in forward positions or in heavily mined areas. Its compactness does not compromise power:This is a full-fledged professional detector, capable of "seeing" what others miss.
Conclusion
Minelab F3 Compact is an investment in the safety and efficiency of deminers. Time-tested MPS technology combined with a modern compact design makes this mine detector an indispensable tool for clearing areas of explosive hazards.
Frequently Asked Questions about the Minelab F3 Compact Mine Detector
Does this device see mines with a low metal content?
Yes, this is the intended purpose of the Minelab F3 Compact. It is designed to detect objects with a minimal amount of metal (springs, strikers), providing a clear signal where conventional metal detectors are useless.
How effective is it in highly mineralized soils?
Thanks to Bi-Polar Pulse Induction (PI) technology, the device automatically compensates for the effects of mineralization. It works reliably in "difficult" soils without false alarms, which guarantees high search accuracy.
Can I use the Minelab F3 Compact underwater?
The device is completely sealed and meets the IP68 standard. It can dive to a depth of 3 meters, which allows for effective inspection of fords and coastal areas.
How does the Compact version differ from the standard F3 model?
The main difference is the folding telescopic rod. When folded, the length is only 38-40 cm. Technically, the search characteristics are completely identical to the full-size model.
What power does this mine detector use?
It runs on four D (LR20) batteries or rechargeable batteries. Battery life on high-quality components is approximately 15-20 hours.
Does the device have a visual target indication?
The main indication is audible, so that the operator does not take his eyes off the work area. There is also an LED panel for visual monitoring of signal strength in noisy conditions.
