Minelab MF5 Mine Detector: The Professional Standard in Tactical Demining
In today's conflicts and humanitarian demining of deoccupied territories, the quality of equipment is a matter of saving lives. Minelab MF5 is a specialized tactical mine detector designed to detect mines with minimal metal content, improvised explosive devices (IEDs), and unexploded ordnance. With a combination of Australian reliability and innovative pulse technology, the MF5 has become the benchmark for professional deminers worldwide.
Expert Technology Review: Why the Minelab MF5 Is Unmatched?
The main advantage of the Minelab MF5 is its ability to work in highly mineralized soils, where conventional metal detectors produce many false signals. The use of multi-frequency pulse induction allows the device to “see” through magnetic sand, ferrous soil and salt water.
- Adaptive Multi-Frequency (5-75 kHz): The system operates on 4 frequencies simultaneously. This ensures equally high sensitivity to both large metal objects and ultra-small parts (for example, detonators of PFM-1 "Lepestok" type mines).
- Completely sealed (IP68): The device can withstand immersion in water to a depth of 3 meters. This makes it indispensable for checking coastlines, fords, and flooded areas.
- Secrecy and safety: Instead of an unmasking display, an intuitive LED and sound indication is used. This allows you to work effectively in the dark without revealing the operator's position.
Technical specifications (TTX) Minelab MF5
We have systematized the technical parameters for convenient analysis by specialists before making a purchasing decision:
| Parameter | Characteristic value |
|---|---|
| Detector type | Ground tactical mine detector |
| Search technology | Pulse induction |
| Number of frequencies | 4 operating frequencies (5-75 kHz) |
| Moisture protection | IP68 (total immersion up to 3 m) |
| Ground balance | Completely Automatic (maximum stability) |
| Sensitivity | 5 levels (manual adjustment) |
| Temperature range | From -30 °C to +60 °C |
| Operating time | Up to 10 hours from 4 type C batteries |
| Country of manufacture | Australia (Minelab) |
| Weight | 2.8 kg |
Ergonomics and physical parameters
Compactness of equipment is critical for mobile mine clearance teams. Minelab MF5 is designed using the telescopic principle, which allows it to be quickly converted from the transport position to the combat position.

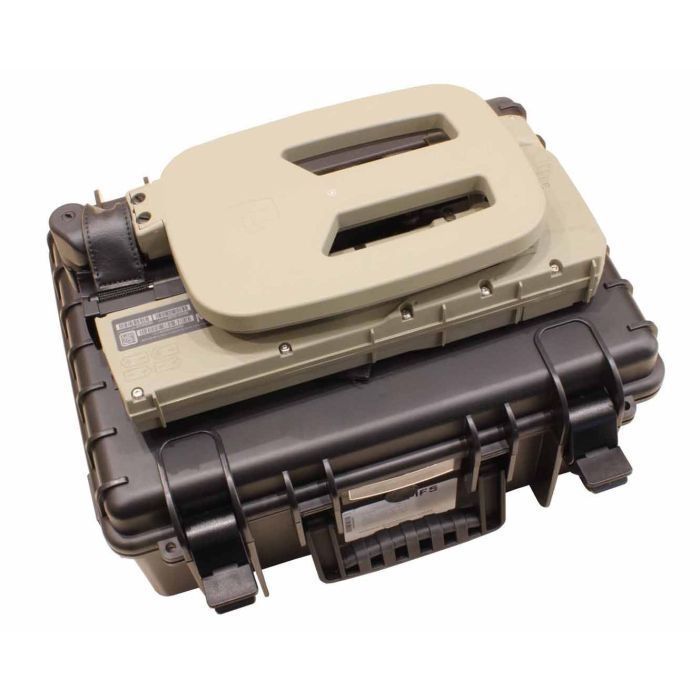

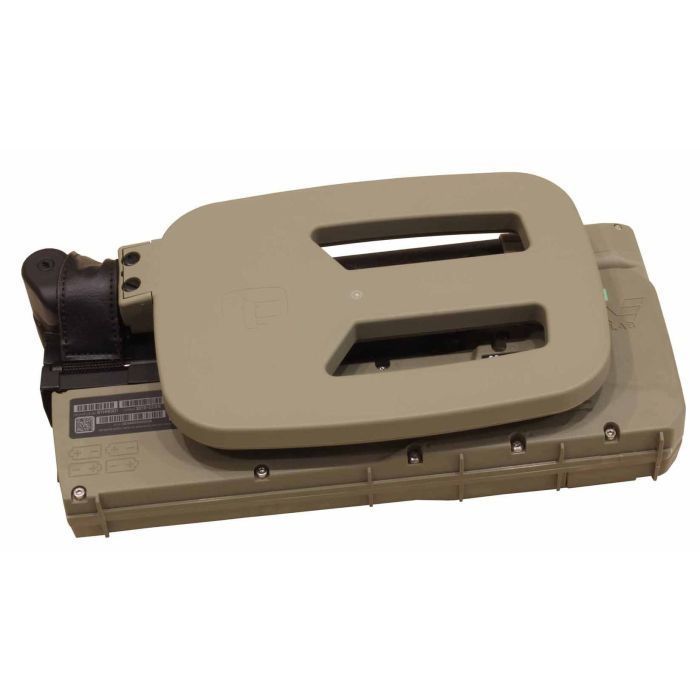

- Record compactness (40 cm): When folded, the device easily fits into a backpack or a standard tactical case.
- Operational length (up to 161.5 cm): Allows you to adjust the rod to any operator height for comfortable work standing or lying down (when clearing mines under fire).
- Tactical camouflage: The desert tan color provides additional camouflage in field and steppe conditions.
Expert opinion: MF5 is the choice for conditions where conventional detectors "go blind". Automatic ground balance allows the operator to focus on searching rather than constantly calibrating. This significantly accelerates site clearance without compromising quality.
Why should you order the Minelab MF5 from us?
By choosing the Minelab MF5, you get an original Australian-made product, proven in real combat conditions. This equipment can withstand the cold of northern regions and the heat of the steppes, operating reliably 24/7.
Frequently asked questions about the Minelab MF5 mine detector
What is the main advantage of the MF5 over civilian metal detectors?
Civilian devices are configured to discriminate against metal objects. Minelab MF5 has maximum sensitivity to all metals, including the smallest springs and strikers of plastic mines, while ignoring ground interference thanks to Multi-IQ technology.
Can the MF5 detect mines in salt water or on the coast?
Yes. With simultaneous multi-frequency scanning and salt compensation modes, the MF5 works reliably in areas where most detectors begin to consistently give false signals due to the conductivity of seawater.
How deep can the device detect anti-personnel mines?
The detection depth of the MF5 is one of the best in its class. The device reliably detects low-metal targets at depths specified by international demining standards, ensuring the safety of the deminer.
Does the MF5 require complex manual adjustments to suit the soil type?
No, the device has a high level of automation. Most parameters are adjusted automatically during operation, which allows the operator to focus on scanning in a hazardous area.
What power does the MF5 use?
The device operates on standard batteries or rechargeable batteries. The batteries can be quickly replaced in the field without tools.
Is the MF5 compatible with headphones?
Yes, there is a jack for tactical headphones. This is critical for working in noisy conditions or when it is necessary to maintain silence during tactical missions.
