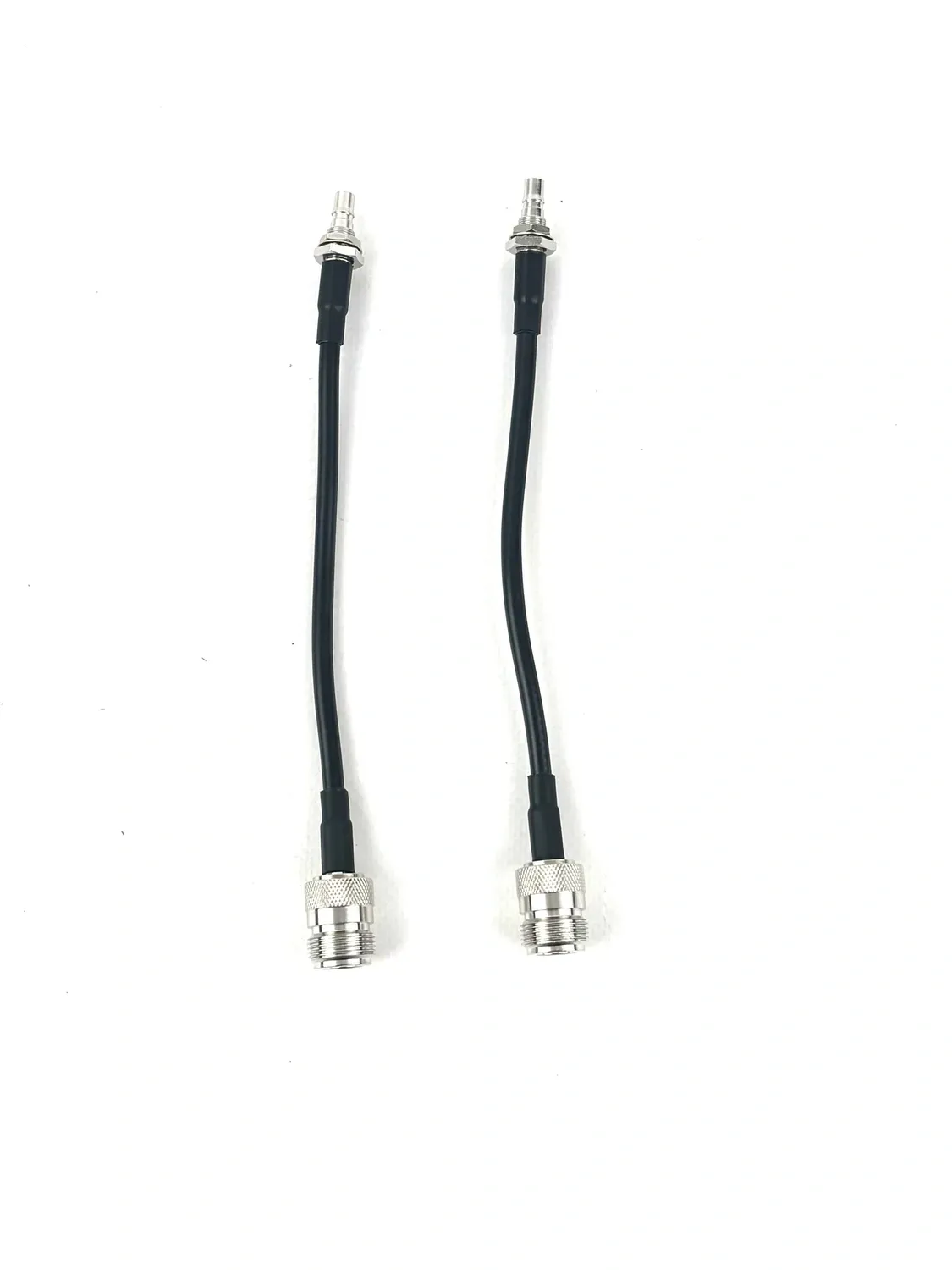

N-Type Female & QMA Female Adapter Kit: A Quick Solution for Tactical Communications
In today's combat environment, the speed of antenna system deployment and the reliability of each connection directly impact mission success and crew safety. The N-Type Female & QMA Female RF Adapter Kit is a professional tool for connecting equipment of different standards. It allows you to connect high-power trunk cables with N-type (male) connectors to pigtails or UAV control panels with a QMA (Quick-Lock) interface.
Why is this kit essential for professional UAV and EW crews?
Most remote antennas and trunk cables (such as RG-8 or WL-400) use N-type connectors due to their reliability and low loss. At the same time, modified remote controls (DJI RC-N1, RC PRO) and signal amplifiers often use the QMA interface due to its compact size and connection speed. This adapter kit ensures perfect compatibility between these standards without loss of signal quality.
- Quick-Lock Technology (QMA): Allows for instant connection without screwing. This is critical when there is a need to urgently change position (hit-and-run tactics).
- Stable impedance of 50 Ohms: Guarantees full compatibility with professional radio equipment, minimizing SWR and protecting the transmitter from overheating.
- Reliable materials: The nickel-plated brass body is resistant to corrosion, moisture and mechanical damage in the field.
- Operation at frequencies up to 6 GHz: Completely covers the 2.4 GHz and 5.8 GHz ranges used in aerial reconnaissance and electronic countermeasures.
Technical and tactical characteristics (TTX) of the kit
The adapters are manufactured with precision accuracy, which ensures minimal insertion loss and high wear resistance with repeated usage.
| Parameter | Characteristic Value |
|---|---|
| Device Type | RF Adapter (Coaxial Adapter) |
| Configuration | N-Type Female (female) ↔ QMA Female (female) |
| Wave Impedance | 50 Ohm (RF communication standard) |
| Operating Frequency | up to 6 GHz (High Frequency) |
| Case Material | Brass |
| Coating | Nickel (oxidation protection) |
| Quantity in the kit | 2 pcs. |
Areas of tactical application:
- Aerial reconnaissance: Connecting remote antenna masts to DJI, Autel remote controls via QMA pigtails.
- Communications upgrade: Adapting N-type trunk lines to compact amplifiers (boosters) such as Alientech or AvengeAngel.
- Electronic warfare / SIGINT systems: Switching antenna modules and analyzers spectrum in mobile monitoring groups.
- Port protection: Use as a transition link to protect the main equipment from physical wear and tear of connectors.
Expert opinion: The use of Female-Female adapters is often necessary when connecting two cable assemblies (male-male) or when bringing the interface to the panel of a protective case. Thanks to the nickel coating, these adapters are not afraid of condensation and aggressive environmental influences on the front lines.
Conclusion: Combat-tested reliability
The N-Type - QMA adapter kit is an indispensable item in the kit of any communications specialist or UAV operator. The absence of backlash, high-quality materials and support for high frequencies make this kit the best choice for those who value signal quality and their own safety.
FAQ:Six Questions About the N-Type (F) - QMA (F) Adapter Kit
What is special about the Female-Female configuration?
This adapter has no center pins on either side - it is a "couplers" with two sockets. It is used to connect two cables that end in plugs (Male). This is the only way to connect the N-Male antenna cable and the QMA-Male remote control cable directly.
What scenarios is this kit indispensable for?
Best suited for creating mobile ground stations. The adapter can be secured in the wall of a protective case: a powerful cable from the antenna is connected on the outside, and a A fast QMA cable for your equipment.
What is the advantage of the QMA Female connector in this setup?
The Quick-lock standard allows you to connect the cable instantly "until it clicks". This saves time in the field when you need to quickly deploy or assemble a position without lengthy threading.
Does the adapter affect the 2.4/5.8 GHz signal?
The losses are less than $0.1\,\text{dB}$, which is practically unnoticeable. A high-quality brass adapter with a resistance of $50\,\Omega$ guarantees no interference and a stable picture in your glasses or monitor.
Why buy two at once?
For the correct operation of MIMO 2/2 systems (two channels simultaneously). A set of two identical adapters guarantees signal symmetry, which is important for a stable data transfer rate without delays.
Physical endurance in field conditions?
The massive N-type housing can withstand the weight of heavy cables, and the QMA mechanism is designed for many connection cycles. Nickel-plated plating protects against moisture and corrosion, ensuring a long service life.
What is the advantage of the QMA Female connector in this bundle?
The Quick-lock standard allows you to connect the cable instantly “until you hear a click.” This saves time in the field when you need to quickly deploy or assemble a position without lengthy threading.
Does the adapter affect the 2.4/5.8 GHz signal?
The losses are less than $0.1\,\text{dB}$, which is practically unnoticeable. A high-quality brass adapter with a resistance of $50\,\Omega$ guarantees no interference and a stable picture in your glasses or monitor.
Why buy two at once?
For the correct operation of MIMO 2/2 systems (two channels simultaneously). A set of two identical adapters guarantees signal symmetry, which is important for a stable data transfer rate without delays.
Physical endurance in field conditions?
The massive N-type housing can withstand the weight of heavy cables, and the QMA mechanism is designed for many connection cycles. Nickel-plated plating protects against moisture and corrosion, ensuring a long service life.
What is the advantage of the QMA Female connector in this bundle?
The Quick-lock standard allows you to connect the cable instantly “until you hear a click.” This saves time in the field when you need to quickly deploy or assemble a position without lengthy threading.
Does the adapter affect the 2.4/5.8 GHz signal?
The losses are less than $0.1\,\text{dB}$, which is practically unnoticeable. A high-quality brass adapter with a resistance of $50\,\Omega$ guarantees no interference and a stable picture in your glasses or monitor.
Why buy two at once?
For the correct operation of MIMO 2/2 systems (two channels simultaneously). A set of two identical adapters guarantees signal symmetry, which is important for a stable data transfer rate without delays.
Physical endurance in field conditions?
The massive N-type housing can withstand the weight of heavy cables, and the QMA mechanism is designed for many connection cycles. Nickel-plated plating protects against moisture and corrosion, ensuring a long service life.
