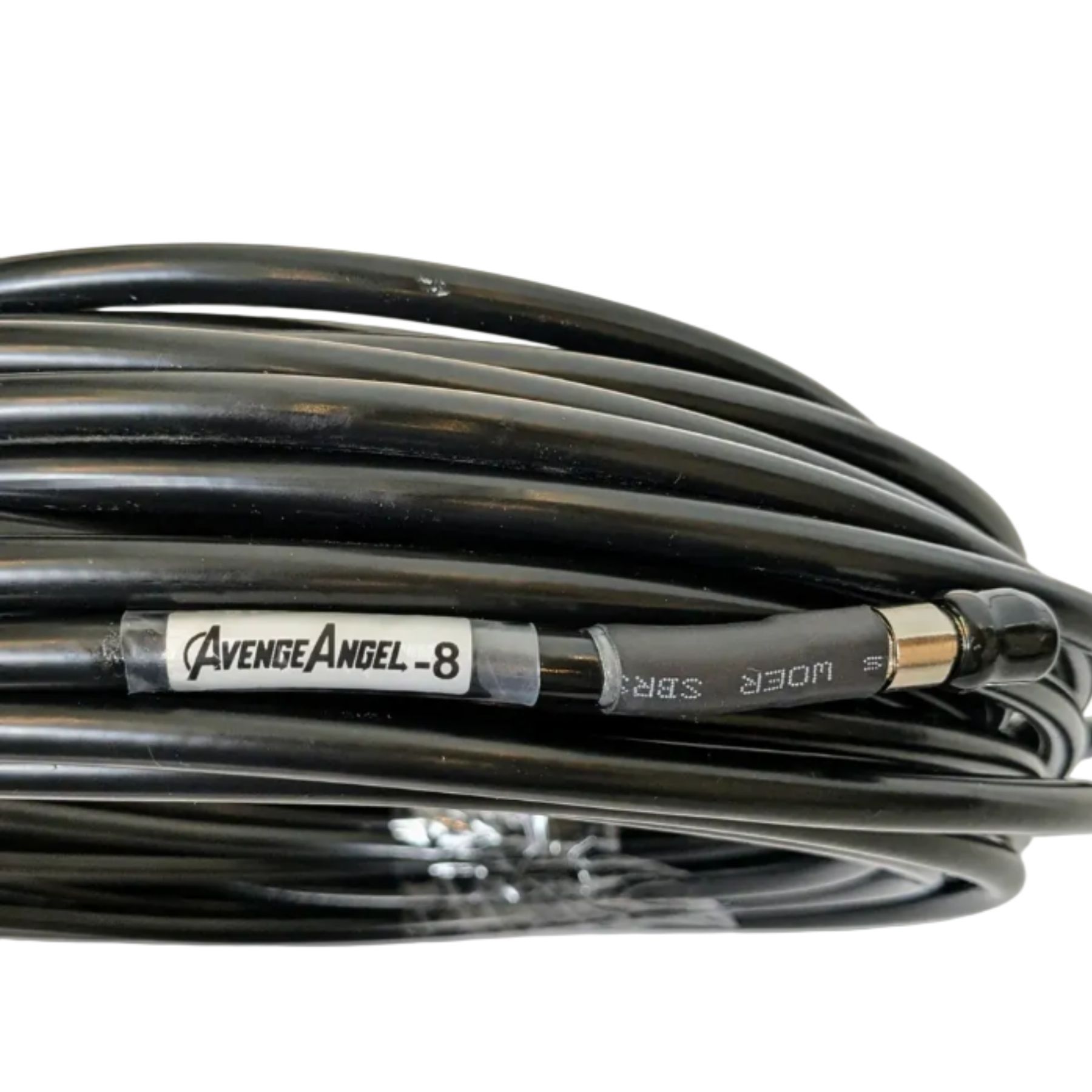

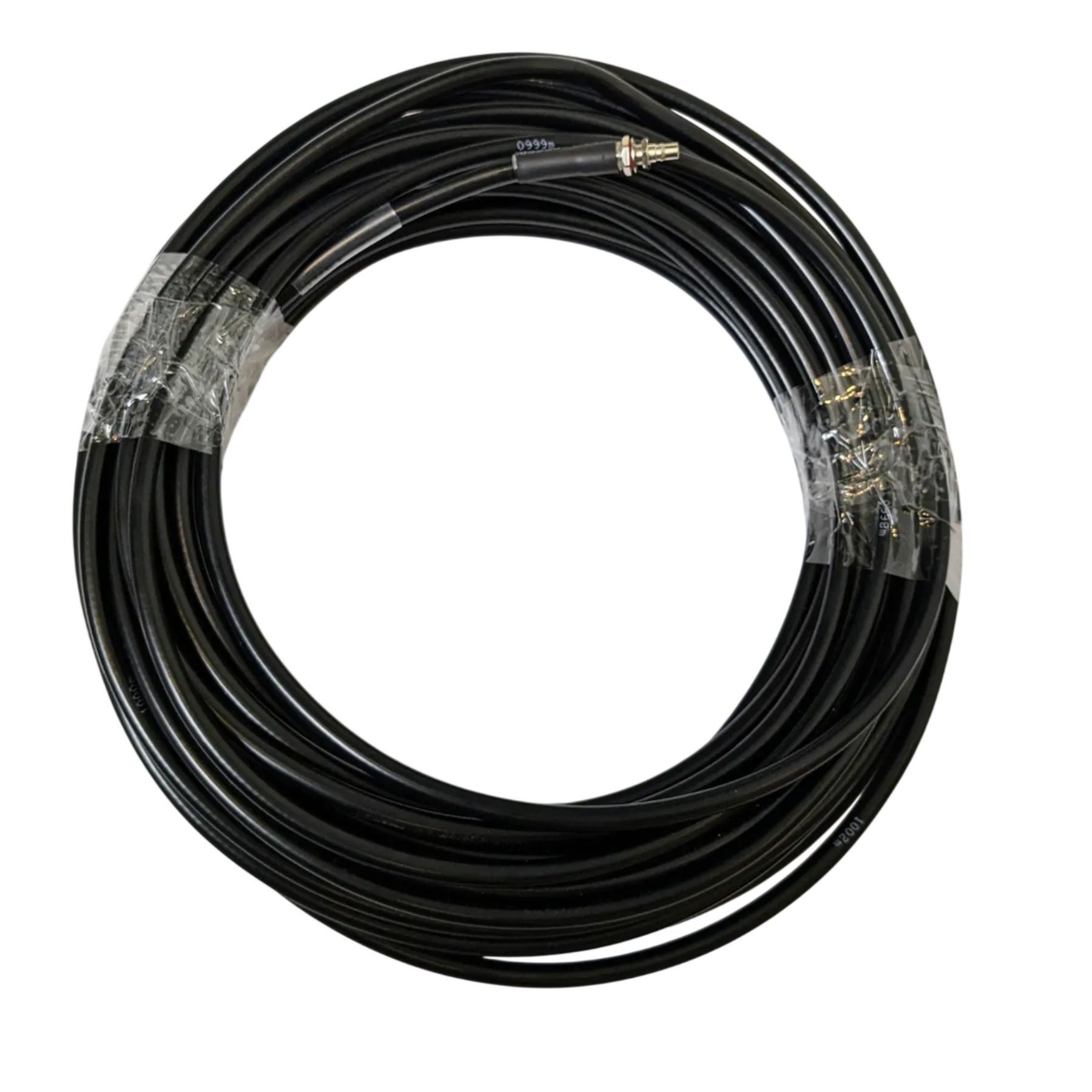

AvengeAngel RG-223 QMA Antenna Cable: Tactical Extension for Operator Safety
In today's combat environment, the position of a UAV or EW operator is a priority target for enemy electronic reconnaissance. The AvengeAngel RG-223 Extension Cable Set (2 x 20 meters) allows for significant antenna extension from the control post. This is critical to preserving personnel lives: antennas can be placed at elevated or remote locations, while the operator remains in a protected shelter.
Advantages of RG-223 Cable in Military Tactical Operations
The choice of RG-223 coaxial cable is determined by stringent signal stability requirements in the face of intense electronic countermeasures. Unlike cheaper analogs (for example, RG-58), RG-223 cable provides excellent shielding and minimal loss at high frequencies.
- Double Shielding: The cable is equipped with a double braid of silver-plated copper, which guarantees 100% protection from external interference and noise.
- Minimal Attenuation: The silver coating of the conductors allows for signal transmission over 20 meters with minimal power loss, which is critical for the operation of FPV stations and communication amplifiers.
- Mechanical Durability: The cable jacket is resistant to UV radiation, temperature changes and friction, which is important when deploying in rough terrain.
- QMA Quick-Release Connectors: The Quick-Lock (QMA) interface allows you to instantly connect and disconnect cables without using special tools, saving precious seconds when changing positions.
Technical characteristics of the AvengeAngel RG-223 kit
The kit consists of two identical communication lines, which allows two antennas to be installed simultaneously (for example, for receiving video and control or for operating MIMO systems).
| Parameter | Characteristic value |
|---|---|
| Cable type | RG-223 (Coaxial,high frequency) |
| Center conductor | Silver-plated copper |
| Connector type | QMA Female — QMA Male (Quick-Lock) |
| Length of one cable | 20 meters |
| Quantity in the kit | 2 units |
| Shielding | Double silver-plated braid |
| Operating temperature range | from -40°C to +85°C |

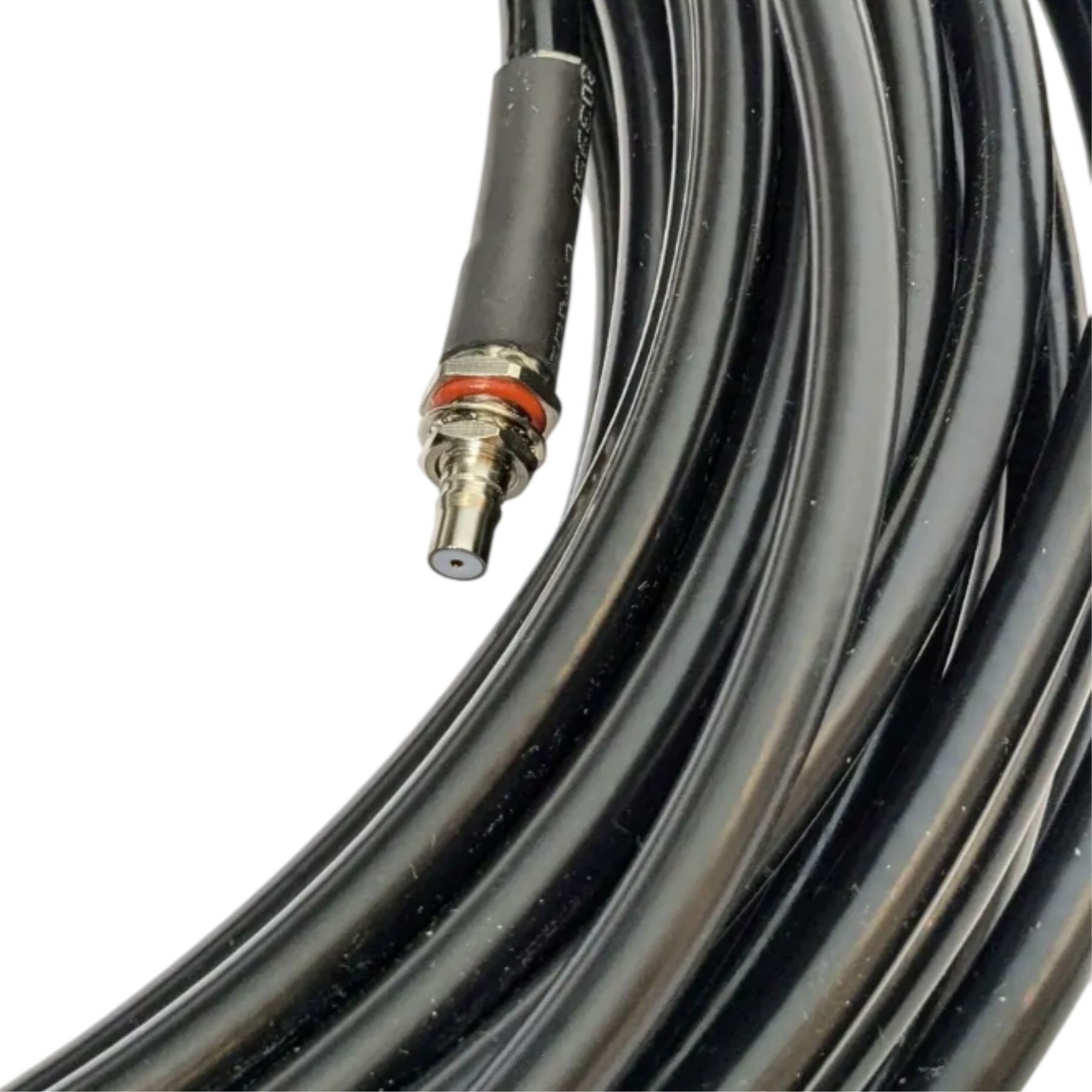

Features of the QMA (Quick-Lock SMA) interface
Using QMA connectors instead of standard SMA significantly increases the tactical mobility of the crew:
- Instant locking: The connector snaps into place with one movement, providing a secure, vibration-resistant connection.
- 360° rotation: Once connected, the cable can be freely rotated around its axis, preventing kinks and twisting of the communication line.
- Reliable contact: The design eliminates the risk of “under-tightening” threads, which often happens in the field with conventional SMA connectors.
Important: This kit is designed specifically for use with antenna amplifiers, UAV ground control stations, and electronic warfare systems such as the AvengeAngel and similar systems that use the QMA interface.
Why buy the AvengeAngel RG-223 cable from us?
We understand the importance of every detail on the front lines. Our cables are tested for signal integrity and connector crimping quality. You get a ready-to-use solution that won't let you down when the chips are down.
- Guaranteed full compliance with stated performance specifications.
- High-quality connectors with minimal SWR (standing wave ratio).
- Short delivery time to meet the needs of units.
Conclusion: Reliability, safety, communication
The AvengeAngel RG-223 QMA 20m extension cable is not just an accessory, but an operator's survival tool. By ensuring stable antenna operation at a distance, you gain an advantage in stealth and the quality of UAV or electronic warfare control.
FAQ: Five questions about the AvengeAngel RG-223 cable (20 m)
What makes the RG-223 cable better than budget options like RG-58?
RG-223 is a higher-class cable with double shielding and silver coating on the conductors. This ensures minimal signal loss at high frequencies and excellent protection from external interference. At a distance of 20 m, the use of RG-223 is critical to ensure that the power of your remote control is not "lost" on the way to the antenna.
What is the advantage of QMA (Quick-lock) connectors?
QMA connectors are This is the "quick" version of SMA. They have a latching mechanism that allows you to connect or disconnect the cable in a second without using keys or threads. This is vital for mobile teams when an emergency change of position is required.
Why does the operator need a cable that is 20 meters long?
It's for your safety. The 20 m length allows the pilot to remain in safe cover while the antenna is exposed to the elements. The enemy can home in on the antenna, while you remain out of harm's way based on the signal source's coordinates.
How much signal attenuation does the cable have over such a length?
Attenuation occurs in any cable, but the silver-plated RG-223 core minimizes it. However, for a 20-meter line, it is recommended to use active signal boosters (amplifiers) to fully compensate for feeder losses and achieve maximum range.
Durability and compatibility?
The cable has durable insulation that is resistant to frost and ultraviolet radiation. Factory assembly prevents moisture from entering the connectors. The cable is fully compatible with modern amplification systems (AvengeAngel, Alientech) using the QMA interface.
What is the advantage of QMA (Quick-lock) connectors?
QMA connectors are the "quick" version of SMA. They have a latching mechanism that allows you to connect or disconnect the cable in a second without using keys or threads. This is vital for mobile teams when they need to quickly change positions.
Why does the operator need a cable that is exactly 20 meters long?
It's for your safety. The 20 m length allows the pilot to remain in a safe shelter while the antenna is exposed to the open air. The enemy locates the antenna, and you remain outside the risk zone of defeat based on the coordinates of the signal source.
How much signal attenuation does it have over such a length?
Attenuation occurs in any cable, but the silver-plated RG-223 core minimizes it. However, for a 20-meter line, it is recommended to use active signal boosters (amplifiers) to fully compensate for feeder losses and fly to the maximum range.
Durability and compatibility?
The cable has durable insulation that is resistant to frost and ultraviolet radiation. Factory assembly prevents moisture from entering the connectors. The cable is fully compatible with modern amplification systems (AvengeAngel, Alientech) using the QMA interface.
What is the advantage of QMA (Quick-lock) connectors?
QMA connectors are the "quick" version of SMA. They have a latching mechanism that allows you to connect or disconnect the cable in a second without using keys or threads. This is vital for mobile teams when they need to quickly change positions.
Why does the operator need a cable that is exactly 20 meters long?
It's for your safety. The 20 m length allows the pilot to remain in a safe shelter while the antenna is exposed to the open air. The enemy locates the antenna, and you remain outside the risk zone of defeat based on the coordinates of the signal source.
How much signal attenuation does it have over such a length?
Attenuation occurs in any cable, but the silver-plated RG-223 core minimizes it. However, for a 20-meter line, it is recommended to use active signal boosters (amplifiers) to fully compensate for feeder losses and fly to the maximum range.
Durability and compatibility?
The cable has durable insulation that is resistant to frost and ultraviolet radiation. Factory assembly prevents moisture from entering the connectors. The cable is fully compatible with modern amplification systems (AvengeAngel, Alientech) using the QMA interface.
