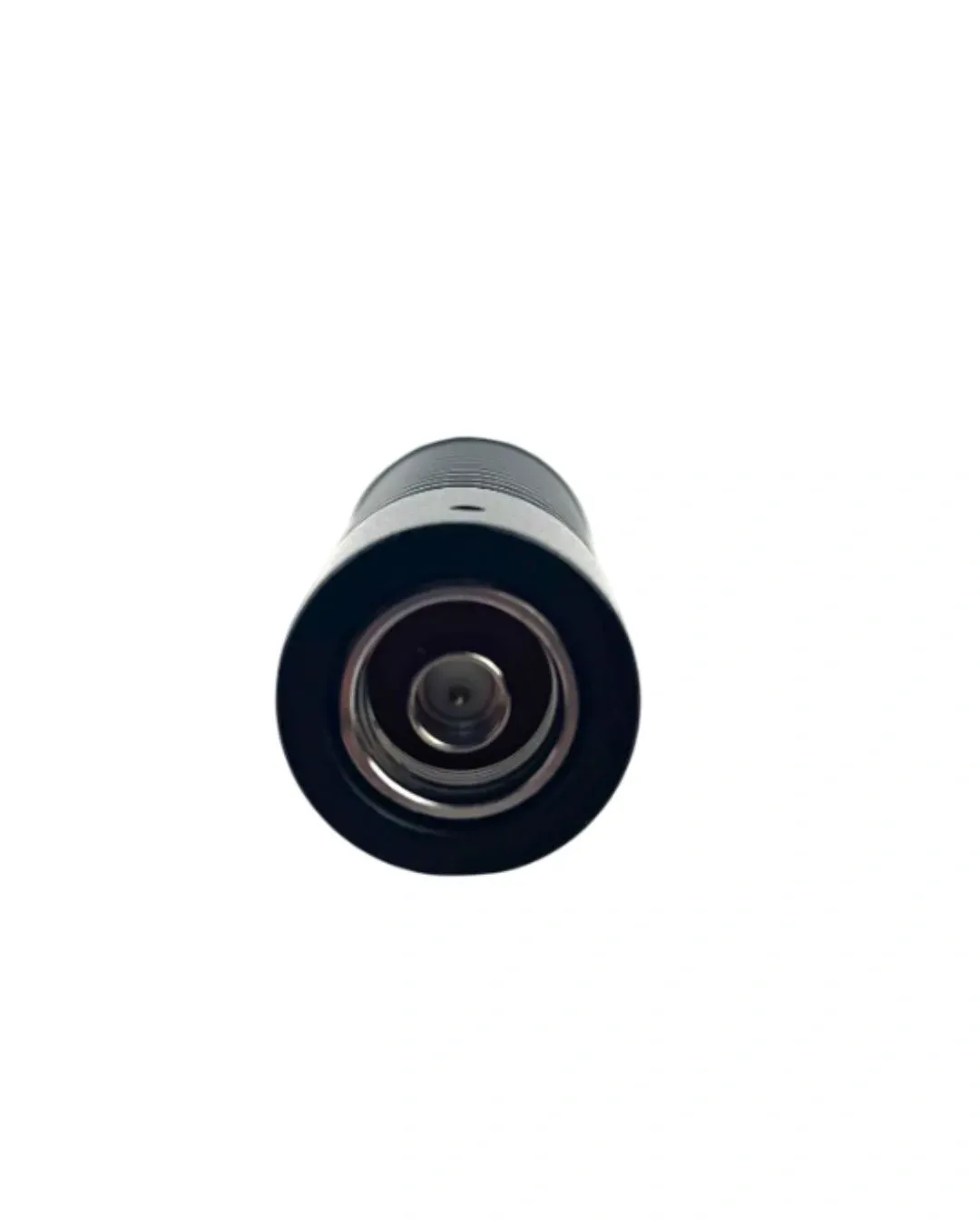

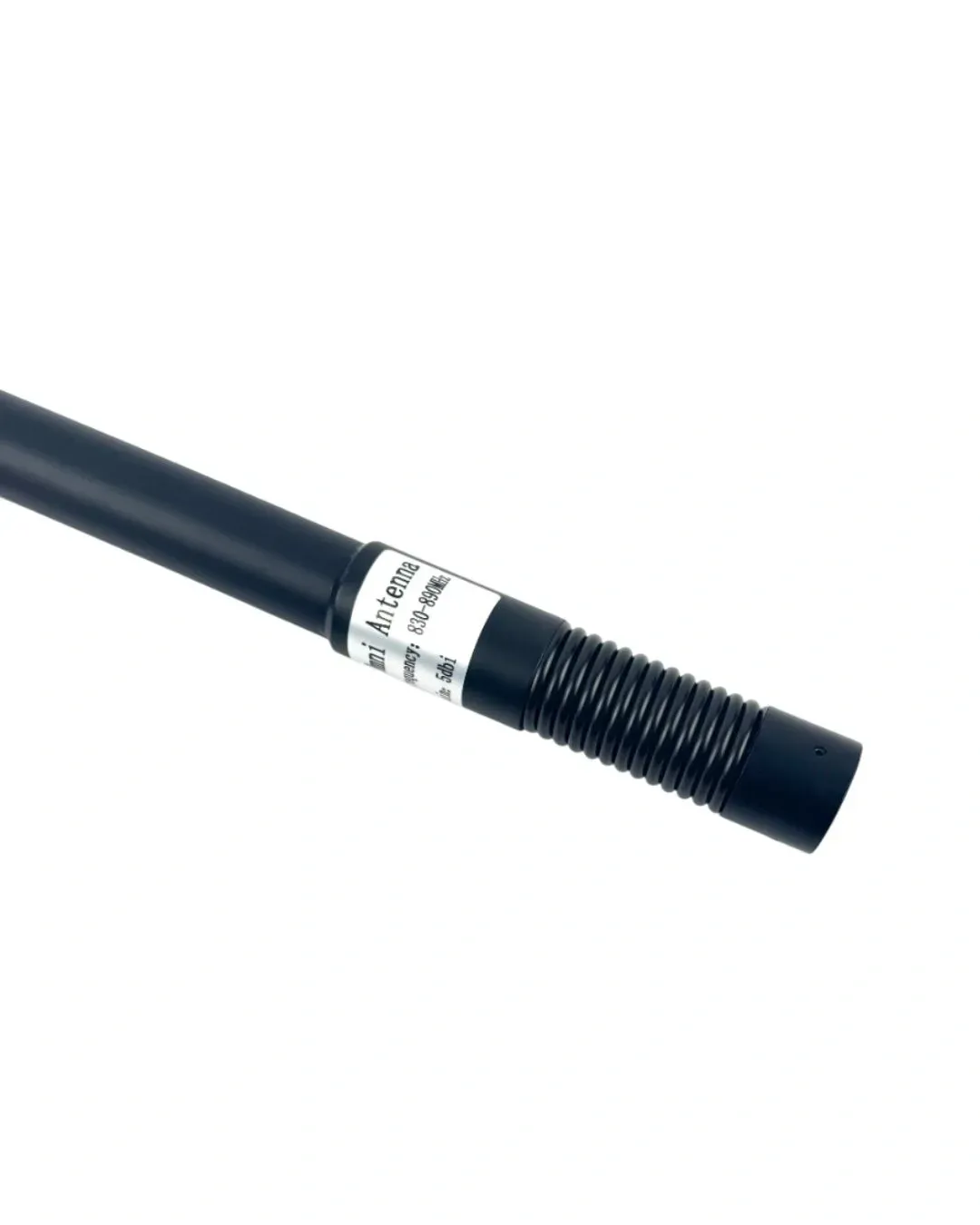

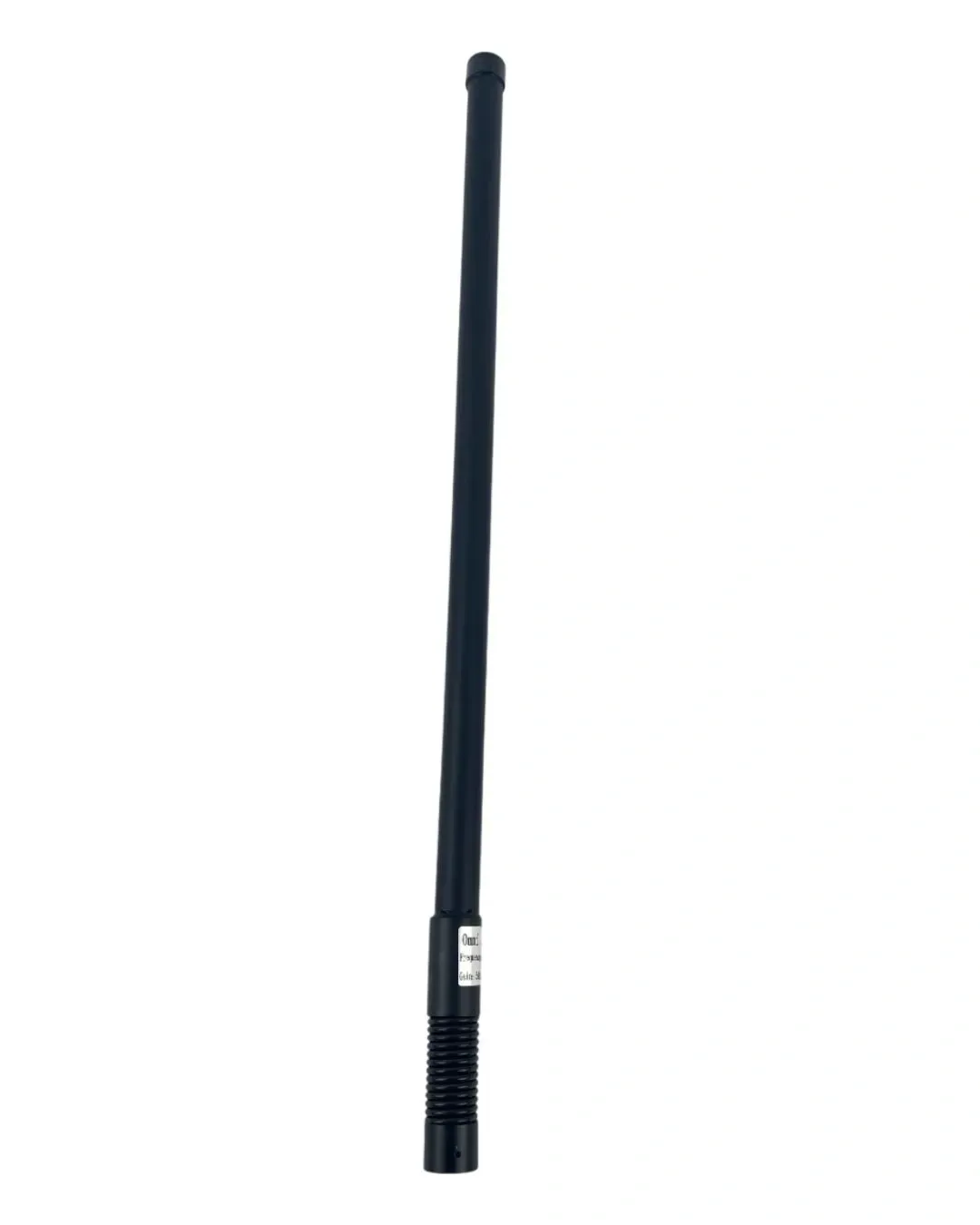

Collinear Spring Antenna 830-890 MHz (5 dBi): Maximum Survivability for Mobile Electronic Warfare
In conditions of intensive off-road maneuvering and passing through forest belts, a conventional antenna becomes a weak point of any system. Collinear spring antenna 830-890 MHz with 5 dBi gain is designed specifically for installation on military pickup trucks, armored vehicles and mobile electronic warfare platforms. Thanks to its flexible base, it withstands mechanical impacts from branches and obstacles, maintaining the functionality of the equipment in the most critical moments.
Why is a spring base the standard for tactical vehicles?
Unlike rigid structures, a spring antenna provides shock and vibration damping. This not only saves the antenna itself from breaking, but also protects the mounting location (mount) and the cable connector from being torn out. The 830-890 MHz band is strategically important for:
- Counter-FPV drones: Blocking primary control and telemetry channels in the 800+ MHz spectrum (including popular ELRS and Crossfire frequencies).
- Stable communication on the move: Signal amplification for tactical radio networks and repeaters.
- High equipment survivability: The antenna continues to operate after contact with tree branches, camouflage nets, or building elements.
Technical and tactical characteristics (TTX)
The antenna combines optimal gain and high power throughput, which is necessary for working with active jamming modules.
| Parameter | Characteristic value |
|---|---|
| Operating frequency range | 830 – 890 MHz |
| Gain | 5 dBi |
| Impedance | 50 Ohm |
| Polarization | Vertical |
| Design Type | Collinear,on a spring base |
| Pattern | 360º (omnidirectional) |
| Compatibility | Electronic warfare systems, repeaters, radios |
Advantages of 5 dBi gain in combat conditions
The 5 dBi gain provides an ideal balance between range and vertical lobe width. This allows you to:
- Maintain the "dome" Tilt protection: Unlike high-gain antennas (9-12 dBi), which have a very narrow beam, the 5 dBi model does not lose connection with the target when the car tilts on an uneven road.
- Efficiently work against low-flying targets: Concentration of energy along the horizon ensures reliable suppression of FPV kamikazes on approach.
- Reduce the load on the amplifier: The 50 Ohm impedance ensures a low SWR, which protects expensive electronic warfare modules from overheating and failure.
Expert advice: For best results, mount the antenna on the metal surface of the car roof. The metal acts as a counterweight (ground plane), which significantly improves radiation efficiency and frequency response stability.
Durability and Adaptability
The antenna materials are resistant to fuels and lubricants, ultraviolet radiation, and sudden temperature changes. The spring mechanism is made of hardened steel, which does not lose its properties after thousands of bending cycles. This is a reliable component for the Kupol systems and other echeloned defense systems.
Conclusion: Reliability that saves equipment
Collinear spring antenna 830-890 MHz (5 dBi) is the choice for those who work in real field conditions. It provides the necessary signal amplification, while ensuring that the very first branch will not leave your subdivision without electronic protection.
Tactical FAQ: Six questions about the 868 MHz collinear antenna
Why is the 830-890 MHz range considered "surgically precise"?
This antenna is most effective in the 868 MHz region — the main frequency of the ExpressLRS (ELRS) protocol. It does not disperse the module's power into unnecessary spectrum, but concentrates all the interference energy precisely there,Where does the FPV kamikaze control signal come from?
What does 5 dBi provide for the shape of the protective dome?
5 dBi is the perfect balance. The antenna compresses the radio emission into the shape of a flat donut. It hits further along the horizon than a regular antenna, but maintains dense coverage at the top so that the drone does not slip through the "blind zone" when diving.
Why is the spring a critical part for auto-electronic warfare?
When driving through greenery or driving into cover, a rigid antenna will break. The spring acts as a shock absorber: it allows the antenna to bend 90 degrees and instantly return to operation. This protects your electronic warfare module from mechanical damage to the connectors.
Does the antenna affect Starlink or a gaming laptop?
The sub-1 GHz band is safe for Starlink and Wi-Fi. Your ASUS TUF and satellite Internet will work stably. However, mobile communication (GSM-900) inside the car may disappear - take this into account when planning coordination.
How to properly install an antenna on a pickup truck for 100% efficiency?
The best place is the center of the metal roof. The roof of the car serves as a reflector (ground plane). If you place it on its edge, the protective "donut" will be skewed, and the drone will be able to fly much closer on one side than on the other.
What is the main danger when working with such a precise antenna?
The antenna is narrowband. If you connect it to a module of a different frequency (for example, 700 or 1000 MHz), a high SWR will occur. Energy will return to the device, and the module will burn out instantly. Always check the markings before turning it on.
